918 ROLL GROOVER ONLY

Description
Specification

Capacity	1" - 12" Sch. 10 Steel, Stainless Steel
	1" - 8" Sch 40 Steel, PVC
	1" - 2" Sch 40 Stainless Steel
	2" - 6" Copper (Type K, L, M, & DWV)
	2 1/2"-4" Sch 80 PVC
Weight	81 lbs. (37 kg)

CATALOG NUMBER	MODEL NO.	DESCRIPTION	WEIGHT
			LB.	KG
47222	918 only	918 Roll Groover Only	95	43.1
48297	918-1	918 Roll Groover w/300 Power Drive Mount Kit	104	47.2
48377	918-2	918 Roll Groover w/1822 Power Drive Mount Kit	134	60.9
48382	918-4	918 Roll Groover w/1224 Carriage Mount Kit	131	59.5
48387	918-5	918 Roll Groover w/535 Carriage Mount Kit	117	53.1
MOUNTING KIT ONLY
CATALOG NUMBER	MODEL NO.	DESCRIPTION	WEIGHT
			LB.	KG
48292	911	300 Power Drive Mount Kit Only	9	4.0
48392	912	1822 Carriage Mount Kit Only	39	17.7
48397	914	1224 Carriage Mount Kit Only	36	16.4
48402	915	535 Carriage Mount Kit Only	22	10.0
ACCESSORIES
CATALOG NUMBER	MODEL NO.	DESCRIPTION	WEIGHT
			LB.	KG
48405		Roll Set for 8"-12" Sch 10 (8" Sch 40) With Carry Case	18	8.2
48407		Roll Set for 1 1/4"-1 1/2" Sch 10/40 With Carry Case	10	4.5
48412		Roll Set for 1" Sch 10/40 and 1 1/4"-1 1/2" Sch 10/40 with Carry Case	20	9.0
48417		Roll Set for 2"-6" Copper	10	4.5
59992		2 1/2''- 12'' Stabilizer for Grooving Nipples	11	5.0
49662		Tool Box	5	2.0
76822		918 Roll Grover Inch Diameter Tape	1/2	0.1
76827		918 Roll Grover Metric Diameter Tape	1/2	0.1
42360	1206	1206 Stand	31	14.1

Compact lightweight design allows for easy transport.
Extensive grooving capacity for a wide range of applications.
Rugged, durable housing enables unit to withstand harsh use.
Two-stage pump plus 15 ton ram permit quick and smooth operation.
Quick easy set-up. Easy rollset changeout.
Specifically designed groove and drive rolls product consistent, accurate grooves throughout the capacity range.

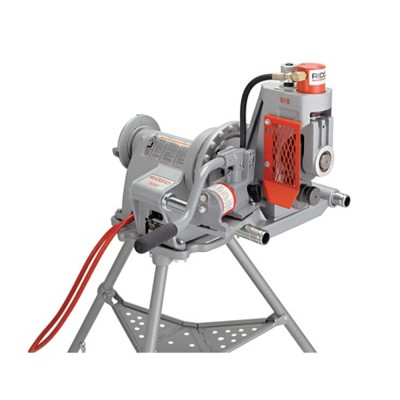

With one man set-up and operation, the 918 is the ideal groover for job site requirements. The 918 mounts quickly to RIDGID 300 power drive, 535, 1822, or 1224 Threading Machines. Designed to provide maximum efficiency, the 918 is capable of grooving up to 12" Schedule 10 and 8" Schedule 40 standard wall pipes.
