| D30 & D65S SYSTEM | |
| Camera Head | 0.86" (22 mm) |
| Cable Length | 65' (20 m) |
| Cable Diameter | 0.33" (8,3 mm) |
| Line Capacity | 1¼" to 3 / 4" (32 - 75 or 100 mm) |
| Weight | 8.6 lbs. (3,9 kg) or 9.8 lbs. (4,4 kg) |
| Size | Length 13.25" (33.7 cm), Width 6.6" (16.8 cm), Height 14.2" (36.1 cm) |
| Resolution | 628 x 586 NTSC |
| Ball Guide | 2 included |
| Sonde | Standard with 65" (20m) microDrain, 512 Hz |
| Counter | Not available |
|
CATALOG NUMBER |
DESCRIPTION | WEIGHT | |
| LB. | KG | ||
| 33103 | microDrain D30 Reel (CA-350) (NTSC) | 7.30 | 3.31 |
|
65' (20M)
MICRODRAIN W/SONDE |
|||
|
CATALOG NUMBER |
DESCRIPTION | WEIGHT | |
| LB. | KG | ||
| 37468 | microDrain D65S Reel (SeeSnake) (NTSC) | 9.8 | 4.4 |
| 37473 | microDrain D65S Reel (CA-350) (NTSC) | 9.8 | 4.4 |
| 40788 | microDrain D65S/micro CA-350 System (NTSC) | 11.1 | 5.0 |
|
ACCESSORIES
|
|||
|
CATALOG NUMBER |
DESCRIPTION | WEIGHT | |
| LB. | KG | ||
| 33108 | Interconnect Cable for SeeSnake Monitor | 0.6 | 0.3 |
| 33113 | Interconnect Cable for CA-300/350 Monitor | 0.6 | 0.3 |
| 37483 | microDrain D65S Drum Only NTSC | 5.3 | 2.4 |
| 34318 | 42 mm Pipe Guide, Fits 22 mm Camera (pkg. of 2) | 0.2 | - |
| 40593 | 36 mm Pipe Guide, Fits 22 mm Camera (pkg. of 2) | 0.2 | - |
- Lightweight and compact design is one-half the size of popular inspection systems, easily stowed in a truck and carried onto the jobsite.
- Multi-monitor compatibility with existing SeeSnake monitors, or the micro CA-300/350 digital inspection camera.
- Durable and reliable construction with hardened stainless steel camera head spring assembly for a long service life as well as long lasting high-intensity lights for exceptional viewing.
- Ideal for inspections with tight turns such as toilet traps and P-traps
- Brand: RIDGID
- Product Code: D65S 65 (20MT) CABLE 8.3MM DIA
- Catalog Number: 33103 - 37468 - 37473 - 40788

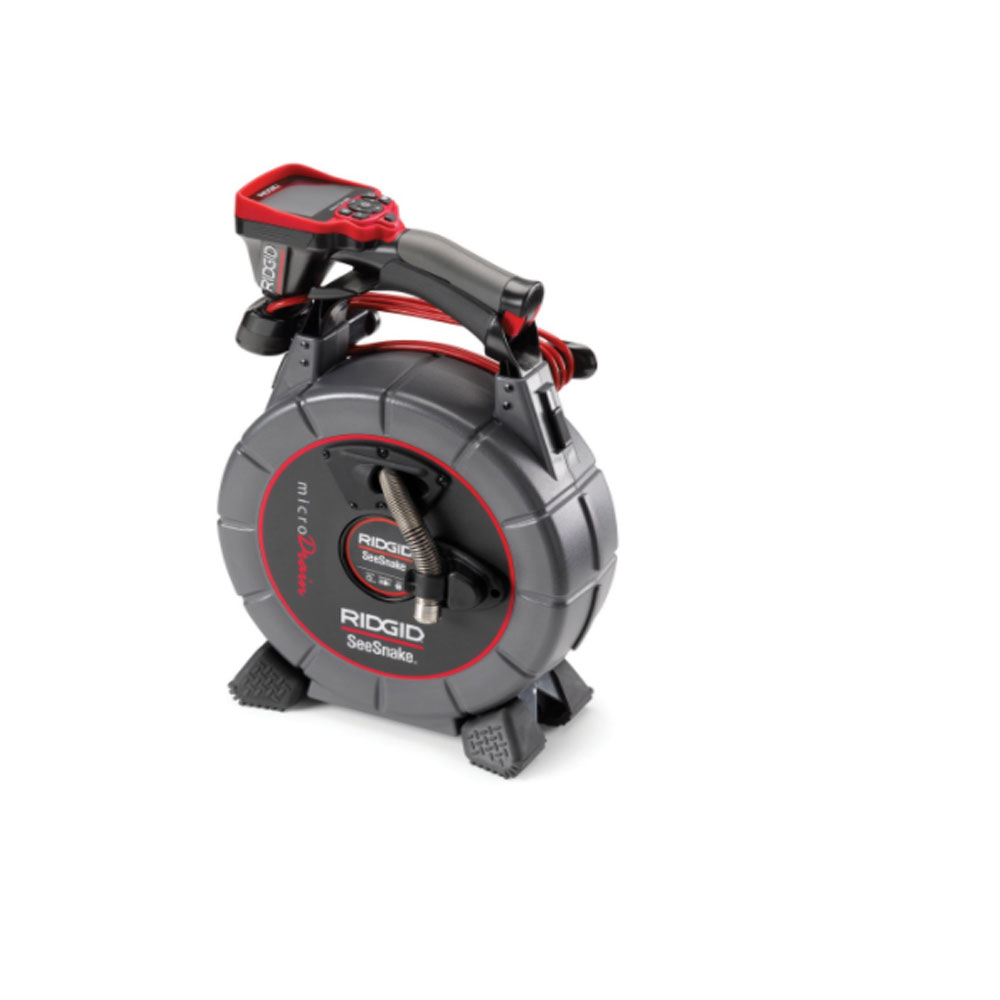

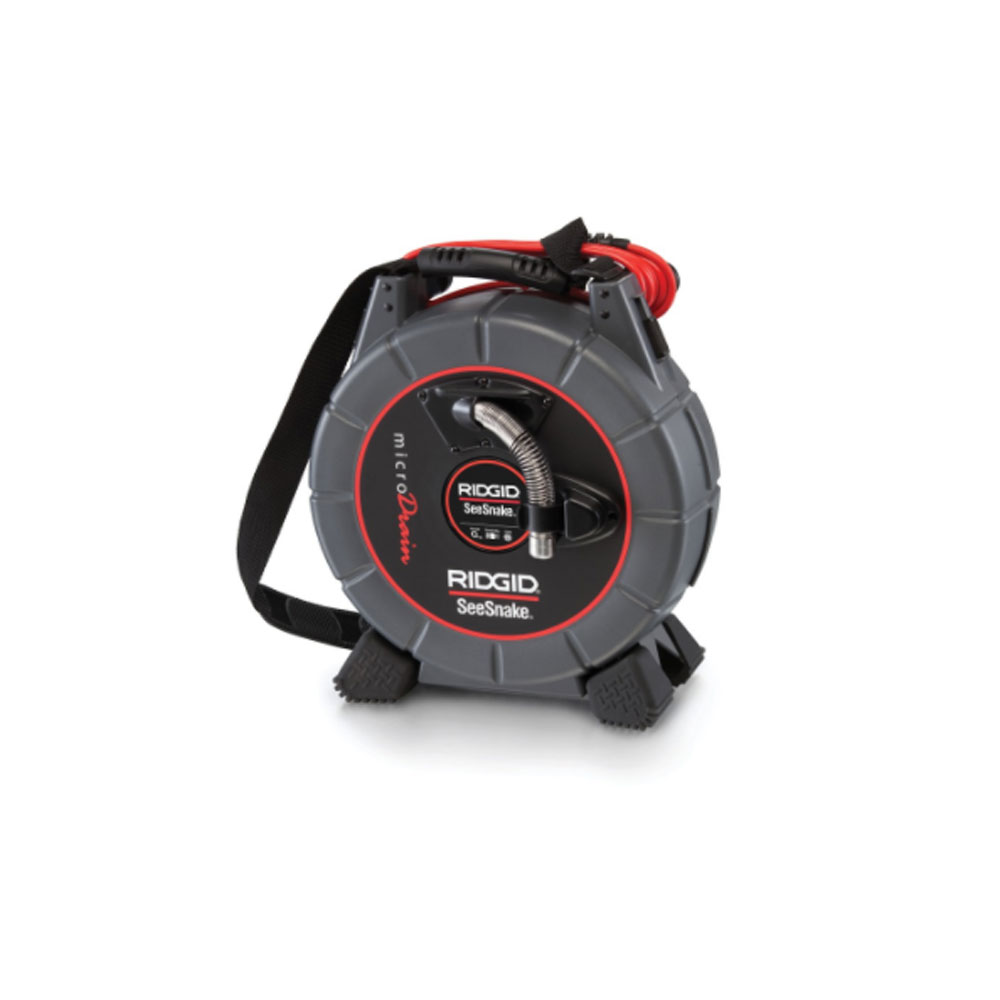

microDrain™ video inspection system provides small size and maneuverability for small diameter and tight-turn radius inspections
