| Capacity | 1" - 12" Schedule 10 steel and stainless steel. | ||||
| 1" - 8" Schedule 40 steel and PVC. | |||||
| 2" - 6" copper (types K, L, M & DWV). | |||||
| 1 1/2", 2 1/2" -4" Schedule 80 PVC. | |||||
| Motor | Universal 1/2 HP, 45 RPM (no load). Approved by CSA to CSA and UL standards. | ||||
| Motor Control | On/off heavy-duty with foot switch. |
|
CATALOG NUMBER |
MODEL NO. | VOLTAGE (V) | DESCRIPTION | WEIGHT | |
| LB. | KG | ||||
| 64977 | 918-I | 115 | Roll Grooving Machine Complete | 185 | 84.1 |
| 65902 | 918-I | 230 | Roll Grooving Machine (230V) | 185 | 84.1 |
|
ACCESSORIES
|
|||||
|
CATALOG NUMBER |
MODEL NO. | DESCRIPTION | WEIGHT | ||
| LB. | KG | ||||
| 48405 | Roll Set for 8"-12" Sch 10 (8" Sch 40) With Carry Case | 18 | 8.2 | ||
| 48407 | Roll Set for 1 1/4"-1 1/2" Sch 10/40 With Carry Case | 10 | 4.5 | ||
| 48412 | Roll Set for 1" Sch 10/40 and 1 1/4"-1 1/2" Sch 10/40 with Carry Case | 20 | 9.0 | ||
| 48417 | Roll Set for 2"-6" Copper | 10 | 4.5 | ||
| 59992 | 2 1/2''- 12'' Stabilizer for Grooving Nipples | 11 | 5.0 | ||
| 76822 | 918 Roll Grover Inch Diameter Tape | 1/2 | 0.1 | ||
| 76827 | 918 Roll Grover Metric Diameter Tape | 1/2 | 0.1 | ||
- Powered by a 1/2 HP universal motor and heavy-duty transmission, it produces high quality grooves consistently and effortlessly.
- Comes standard with a rugged wheel stand built for mobility in the shop without compromising stability. The stand’s tray is tough enough to support 200 lbs.
- Features a custom-designed, two-stage hydraulic pump that minimizes pipe flare, operator fatigue and hydraulic fluid leaks.
- Brand: RIDGID
- Product Code: 918-I ROLL GROOVER
- Catalog Number: 64977 - 65902 - 48405 - 48407 - 48412

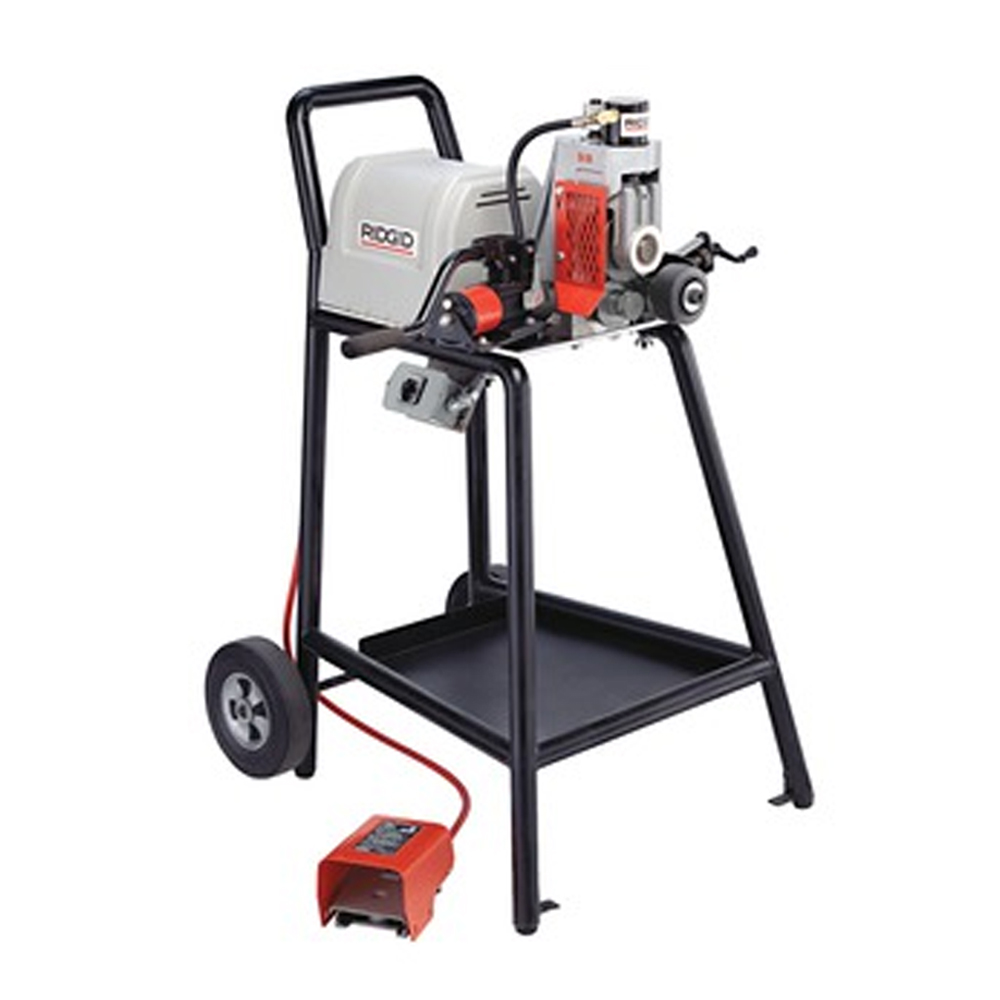

- The RIDGID® Model 918-I Roll Grooving Machine is capable of grooving 1" to 8" schedule 40 and 1" to 12" schedule 10 pipe faster than any roll grooving machine in its class.
