| Capacity | 2" -12" Schedule 5, 10, & 40 steel, stainless steel and aluminum.* | |||
| 14" - 16" Schedule 5 & 10 steel, stainless steel and aluminum. | ||||
| 18" - 24" .250 wall steel, stainless steel and aluminum. | ||||
| 2" - 8" Schedule 40 PVC. | ||||
| 2 1/2" - 4 Schedule 80 PVC. | ||||
| 2" - 8" copper (K & L). | ||||
| 2 1/2" - 8" copper (K, L, & M). | ||||
| 3" - 8" copper (DWV). | ||||
|
CATALOG NUMBER |
MODEL NO. | DESCRIPTION | WEIGHT | |
| LB. | KG | |||
| 95782 | 920 | 920 Roll Groover with 2"- 6" Sch. 40, 8"-12" Sch. 40 and 14"-16" Std. Wall Roll Sets | 380 | 90.30 |
|
ACCESSORIES
|
||||
|
CATALOG NUMBER |
DESCRIPTION | WEIGHT | ||
| LB. | KG | |||
| 42575 | #32 Transport Cart | 14 1/4 | 6.5 | |
| 76822 | 918 Roll Grover Inch Diameter Tape | 1/2 | 0.1 | |
| 76827 | 918 Roll Grover Metric Diameter Tape | 1/2 | 0.1 | |
| 96372 | RJ624 16" - 31" Large Diameter Pipe Stand | 167 | 75.7 | |
| 96982 | Drive and Groove Roll Set for 2" - 8" Copper Tube Type K, L, M, and DMV | 20 | 9.0 | |
| 96987 | Drive and Groove Roll Set for 18" - 20" Sch. 10 Steel or Stainless Steel | 21 | 9.5 | |
| 96992 | Drive and Groove Roll Set for 22" - 24" Sch. 10 Steel or Stainless Steel | 22 | 10.0 | |
| 96997 | Drive and Groove Roll Set for 4" - 6" Sch. 40 Steel or Stainless Steel | 20 | 9.0 | |
- Largest grooving capacity in its class.
- Transportation Mode – Detachable wheels enable one man to easily move the 920 around a jobsite. Also available is a Model No. 32 Transporter.
- Patented Depth Setting Gauge – Easy and accurate groove depth setting does not require adjusting the protective guarding.
- Built-in Pressure Gauge – Helps operator monitor hydraulic pressure to control flare and optimize groove time.
- Front Roll Set Change-Out – User can switch groove roll sets quickly and easily.
- Easy Adjust Support Legs – Helpful when leveling the groover on uneven ground.
- Brand: RIDGID
- Product Code: 920 ROLL GROOVER
- Catalog Number: 95782 - 42575 - 76822 - 76827

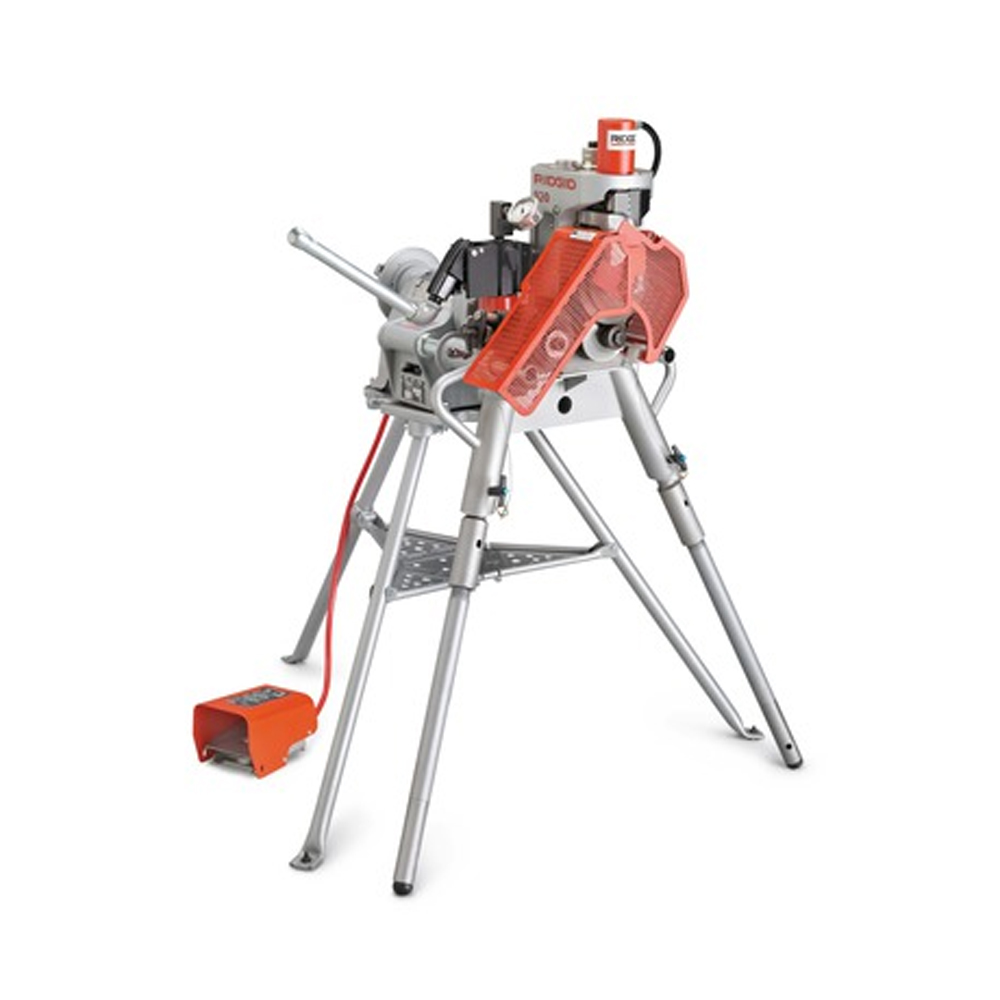

The RIDGID® 920 Roll Groover takes grooving to a whole new level. With a capacity range of 2"-24" diameter pipe, the 920 has the largest capacity of any RIDGID roll groover. The 920 mounts to the RIDGID 300 Power Drive for use in the field or shop. Also available is the RJ624 Large Diameter Pipe Support for grooving pipe up to 24" in diameter, a perfect complement to the 920 Roll Groover.
