| Copper and stainless steel tube and fitting capacity | 1/2" - 4" (12 mm-108 mm) | |||
| For ASTM B88 types K, L, M copper | ||||
| For stainless steel wall thickness up to .065" (1.65 mm) | ||||
| Switch | Toggle on/off | |||
| Cutter Wheel | Model 122 SS | |||
| Reamer | Single flute cone, RH, 1/2" to 2" | |||
| Motor | 1/3 HP, 115V, 60Hz induction motor or 1/3 HP, 230V induction motor | |||
|
CATALOG NUMBER |
MODEL NO. | DESCRIPTION | WEIGHT | |
| LB. | KG | |||
| 10973 | 122XL | Copper Cutting/Prep Machine 1/2"–4" | 72 | 32.7 |
| 14388 | 122XL | Copper Prep Machine 230V | 72 | 32.7 |
| 97827 | 122J | 122J Copper Cut/Prep Machine 100V | 50 | 22.7 |
|
ACCESSORIES
|
||||
|
CATALOG NUMBER |
MODEL NO. | DESCRIPTION | WEIGHT | |
| LB. | KG | |||
| 93717 | 122 1/2" Fitting Brush 12 mm (Pack of 3) | 1/2 | 0.24 | |
| 93722 | 122 3/4" Fitting Brush 18 mm (Pack of 3) | 1/2 | 0.26 | |
| 93727 | 122 1" Fitting Brush 25 mm (Pack of 3) | 3/4 | 0.27 | |
| 93732 | 122 1 1/4" Fitting Brush 32 mm (Pack of 3) | 3/4 | 0.29 | |
| 93737 | 122 1 1/2" Fitting Brush 40 mm (Pack of 3) | 1 3/4 | 0.77 | |
| 93742 | 122 2" Fitting Brush 50 mm (Pack of 3) | 1 3/4 | 0.79 | |
| 12638 | 122XL 2 1/2" Fitting Brush (Pack of 3) | 1 3/4 | 0.79 | |
| 12643 | 122XL 3"-4" Fitting Brush (Pack of 3) | 2 | 0.82 | |
| 94682 | - | 122 O.D. cleaning brush | 1 | 0.44 |
| 46105 | Deburring Disk | 1 1/4 | 0.57 | |
| 93747 | 122 Quick-Change Collet | 2 1/4 | 0.95 | |
| 93712 | 122 Fitting Brush Holder | 6 | 2.63 | |
| 93707 | 122 Fitting Brush Storage Kit Includes Mountable Storage Rack, Quick-Change Collet, Spare Cutter Wheel, and Brushes (1/2", 3/4", 1", 1 1/4", 1 1/2", 2") | 3 | 1.39 | |
| 36662 | 301A | Model 301A Foot Switch 120V | 7 1/2 | 3.39 |
| 33175 | 2191 | E-2191 Cutter Wheel | 1/4 | 0.10 |
| 33551 | 122SS | 122SS Cutter Wheel | 1/4 | 0.10 |
| 10343 | Shoulder Screw for Cutter Wheel (Pack of 2) | 1/4 | 0.10 | |
| 42360 | 1206 | 1206 Stand | 31 | 14.10 |
| 94687 | Reamer Cone Assy | 1/16 | 0.03 | |
- Tube and fitting capacity: 1/2" - 4" (12 mm - 108 mm).
- Powerful 1/3 HP induction motor drives rollers at 300 RPM.
- Rugged O.D. cleaning brush cleans tubing quickly with minimal effort.
- Core reamer easily removes turbulence-causing burrs.
- Cutting handle adjusts to accommodate different tubing sizes.
- Large carrying handle for easy transport to the job site.
- Guide rollers ensure a straight cut with no tracking.
- Built-in 1/2" - incremental scale for quick, easy measuring.
- Cutter wheel tested to over 10,000 cuts.

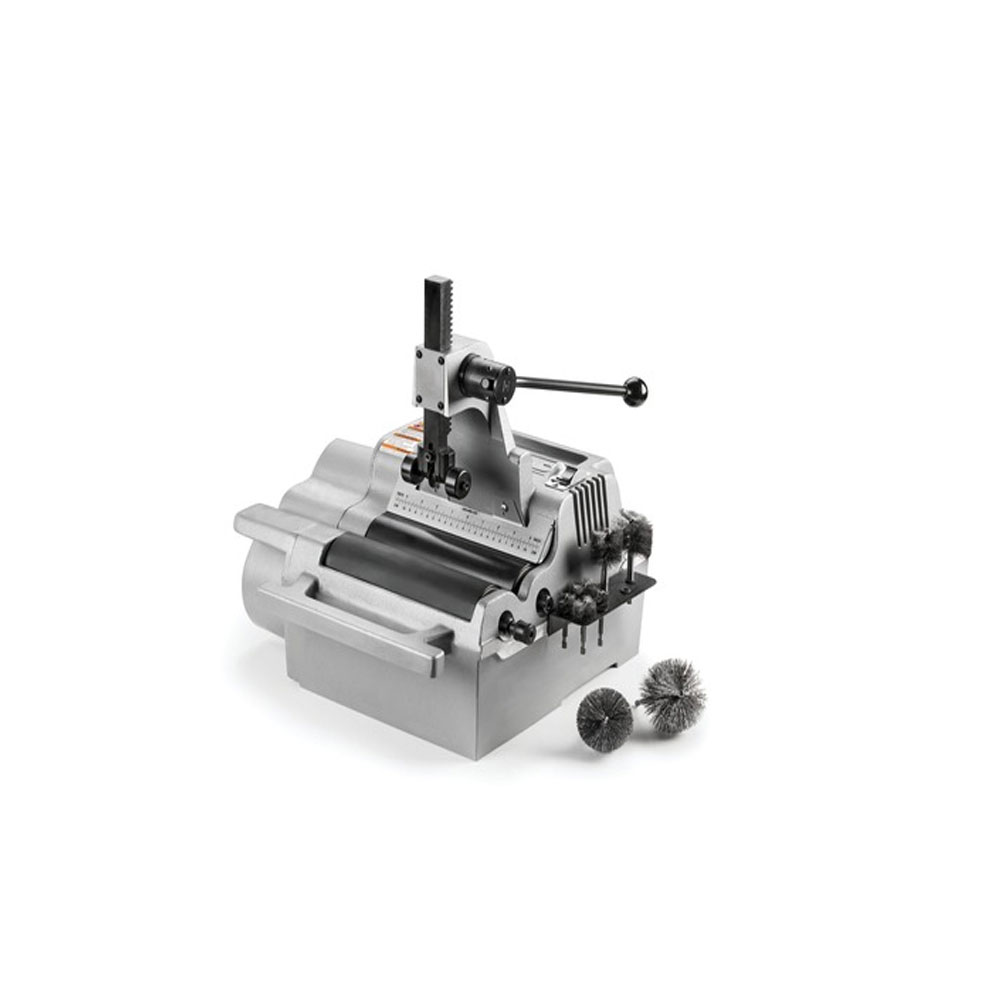

- Fitting brush kit includes six brushes, storage rack and collet.
- Approved to UL standards (NRTLC) (115V only).
- CSA approved (115V only).
- Brand: RIDGID
- Product Code: 122XL
- Catalog Number: 10973 - 14388 - 97827

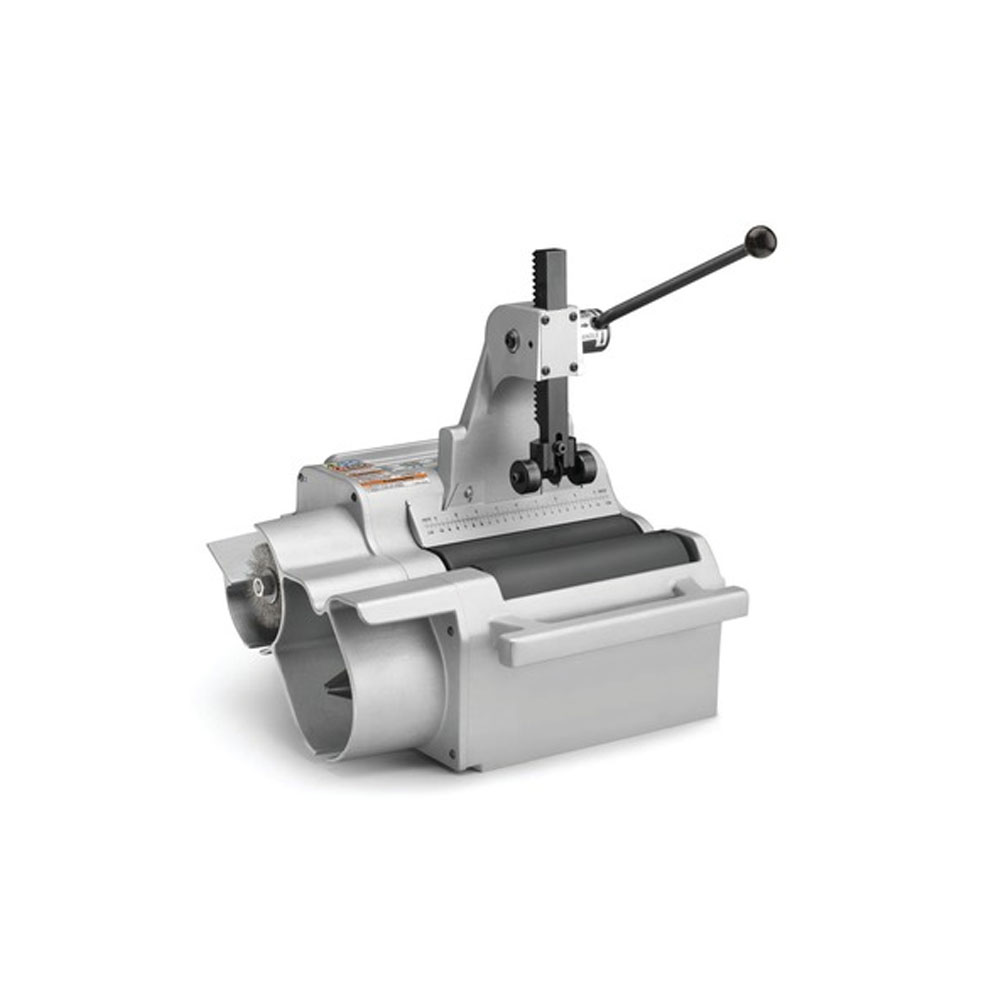

- This machine is designed to cut, clean, ream and deburr copper and stainless steel tubing and fittings quickly and professionally. Weighing only 72 lbs (32.7 kg) and possessing a conveniently located carrying handle, the Model 122XL is ideal for transport directly to the job site. Rugged cast aluminum housing and powerful 1/3 HP induction motor assures a long life.
