| Capacity | 1 1/4" – 6" Schedule 10 and Schedule steel, aluminum, and PVC pipe. | |||
| 1 1/4" – 6" Schedule 10, 1 1/4" – 2" Schedule 40 stainless steel pipe, 11/2" – 4" Schedule 80 PVC pipe. | ||||
| With roll change, 2" – 8" copper tube (Type K, L, M, and DWV). | ||||
| Depth Adjustment | Adjusting screw and integral, index depth gauge. | |||
| Actuation | Feed screw with 1/2" ratchet wrench (included), or any 15/16" hex wrench. | |||
| Power Drive Mounting | RIDGID 300 Power Drive 38/57 RPM (reverse direction only). | |||
|
CATALOG NUMBER |
MODEL NO. | DESCRIPTION | WEIGHT | |
| LB. | KG | |||
| 25638 | 975 | 975 Combo Roll Groover | 26.1 | 11.9 |
| 32828 | 975 | 975 Combo Roll Groover for Use with Copper Tube | 26.1 | 11.9 |
|
ACCESSORIES
|
||||
|
CATALOG NUMBER |
MODEL NO. | DESCRIPTION | WEIGHT | |
| LB. | KG | |||
| 32833 | 975 | 975 Roll Set Kit for 2" - 8" Copper Tube | 5.0 | 2.3 |
| 41855 | 300 | 300PD, Tool Only, 115V 25-60Hz 38RPM | 94.0 | 43.0 |
| 75075 | 300 | 300 Power Drive Only | 94.0 | 43.0 |
| 75435 | 300 | 300 Power Drive Only | 94.0 | 43.0 |
| 42360 | 1206 | 1206 Stand | 31.0 | 14.1 |
| 16703 | 425 | 425 1/8" - 2-1/2" Portable TRISTAND Chain Vise | 32.0 | 14.5 |
| 56662 | VJ-99 | VJ-99 28" - 52" V-Head High Pipe Stand | 23.0 | 10.4 |
| 76822 | - | 918 Roll Grover Inch Diameter Tape | 0.5 | 0.1 |
| 76827 | - | 918 Roll Grover Metric Diameter Tape | 0.5 | 0.1 |
- Auto Tracking & Depth Setting Gauge Means Easier Use -
The 975 Combo Groover includes new, patented auto tracking technology for significantly easier grooving. Whether you're doing machine-powered or manual grooving, the AutoTracking gauge keeps the pipe automatically engaged to the groover throughout the grooving process. The 975 also includes a permanently depth setting gauge for quicker, repeatable set-up.
- Less Hand Force Required
When manually roll grooving, the 975's 55% higher gear reduction means less hand force required versus competitive manual roll groovers. This is especially helpful for over-head roll grooving.
- Durability And Portability -
A tough, ductile iron construction means the 975 can absorb jobsite abuse and provide accurate grooves time after time. A cast-in handle makes the 975 easily portable to and from the jobsite.
- Brand: RIDGID
- Product Code: 975
- Catalog Number: 25638 - 32828 - 32833

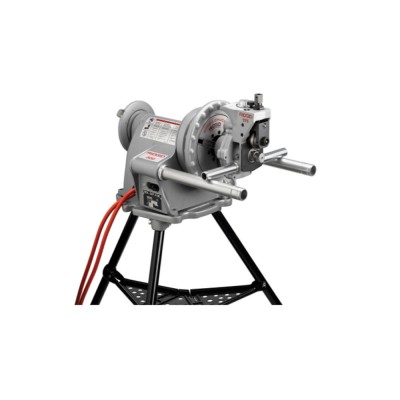

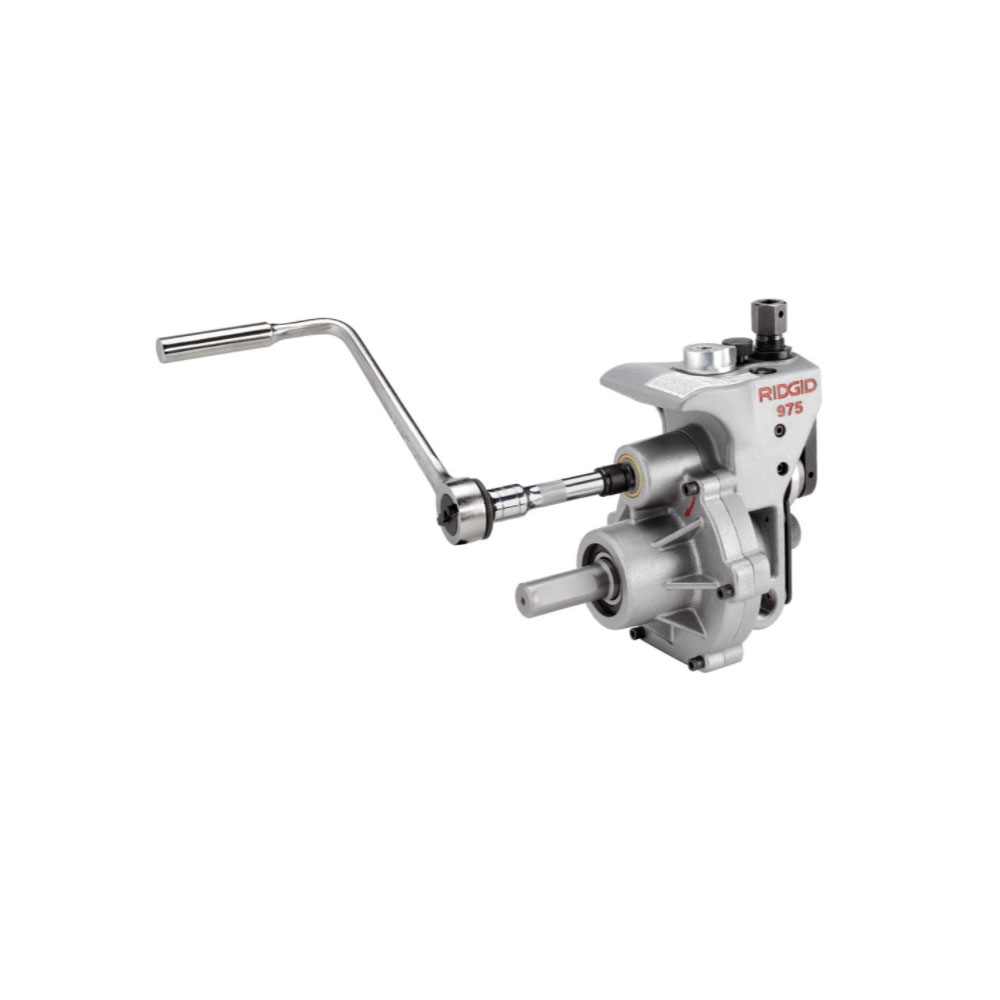

- The Model 975 Combo Roll Groover is two tools in one. Like other RIDGID® roll groovers, the 975 mounts on the RIDGID 300 Power Drive for machine-powered roll grooving jobs. It also designed to manually roll groove in-place pipe.
