| CATALOG NUMBER | MODEL NO. | RADIUS BEND AT CENTER OF TUBE | TUBE O.D. | WEIGHT | ||||
| IN. | MM | IN. | MM | LB. | KG | |||
| 35170 | 358 | 3 | 76 | 5/8 | 16 | 7 1/2 | 3.25 | |
| 35175 | 368 | 3 3/4 | 95 | 3/4 | 19 | 13 1/2 | 6.25 | |
| 35180 | 378 | 3 3/4 | 95 | 7/8 | 22 | 13 1/2 | 6.25 | |

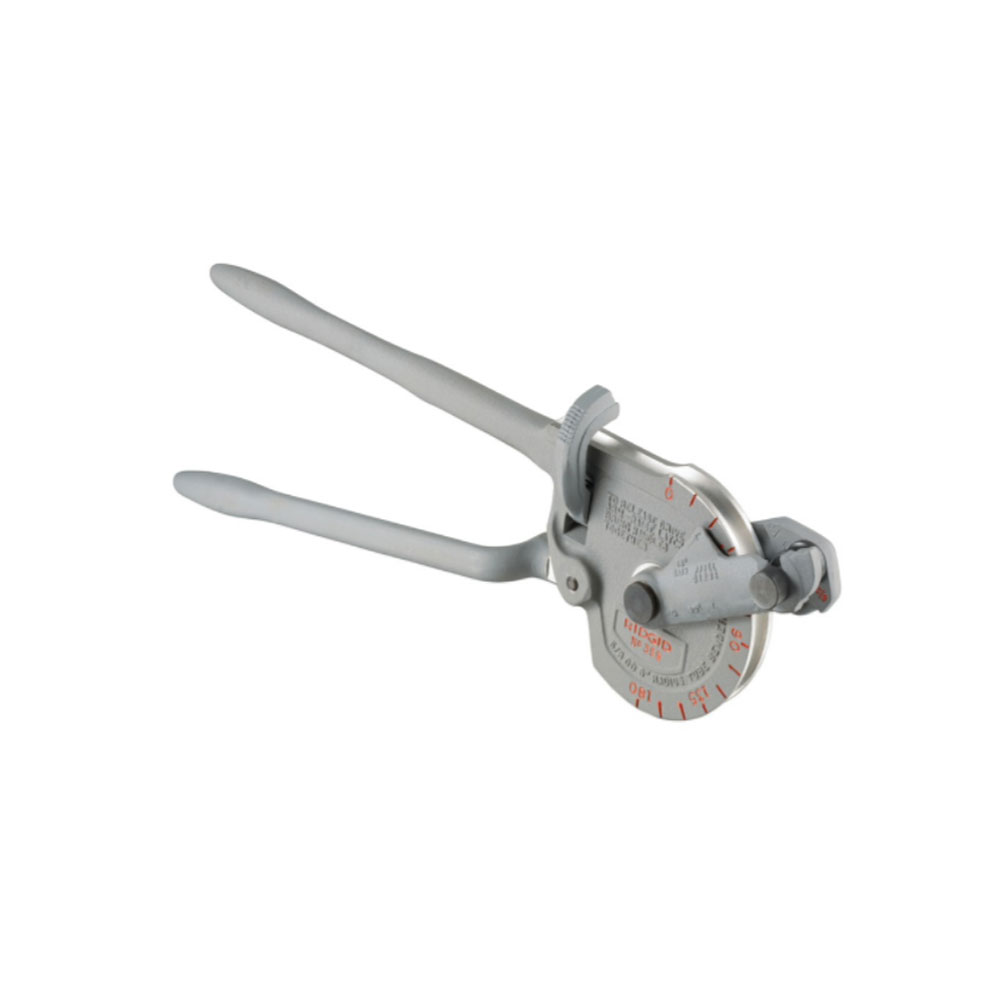

- High-geared mechanical ratios bend heavy-wall steel tube (up to 1/8" wall thickness), stainless steel tube (up to 3/32" wall thickness) and hard copper water tube (types K and L).
- Benders produce uniform bends up to 180° with no need to anneal tubing or use special temper grade tubing.
- Reduce bending effort to a minimum.
- Inch and metric sizes.
- Brand: RIDGID
- Product Code: BENDERS TUBE GEARED RAT LEVER TYPE
- Catalog Number: 35170 - 35175 - 35180
High-geared mechanical ratios bend heavy-wall steel tube (up to 1/8" wall thickness), stainless steel tube (up to 3/32" wall thickness) and hard copper water tube (types K and L).
