| CATALOG NUMBER | DESCRIPTION | STD. WHEEL | CAPACITY | WEIGHT | ||
| IN. | MM | LB. | KG | |||

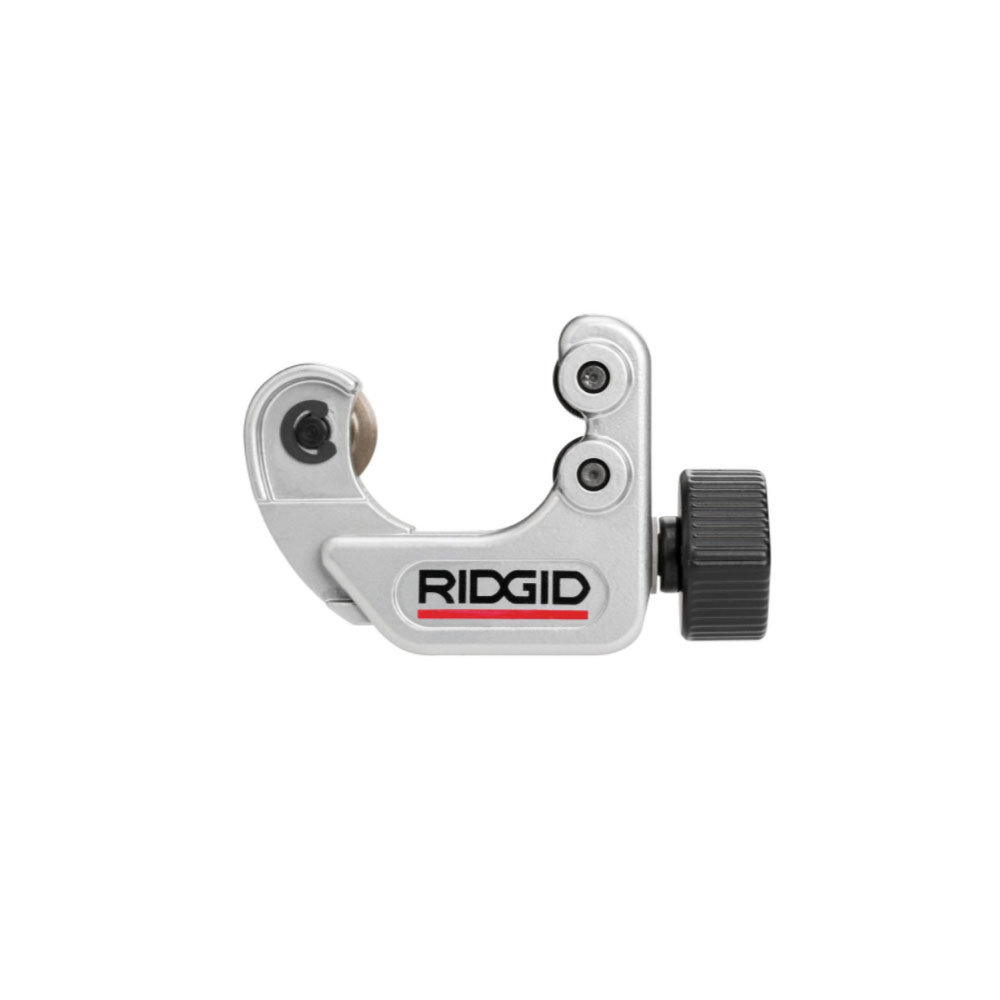

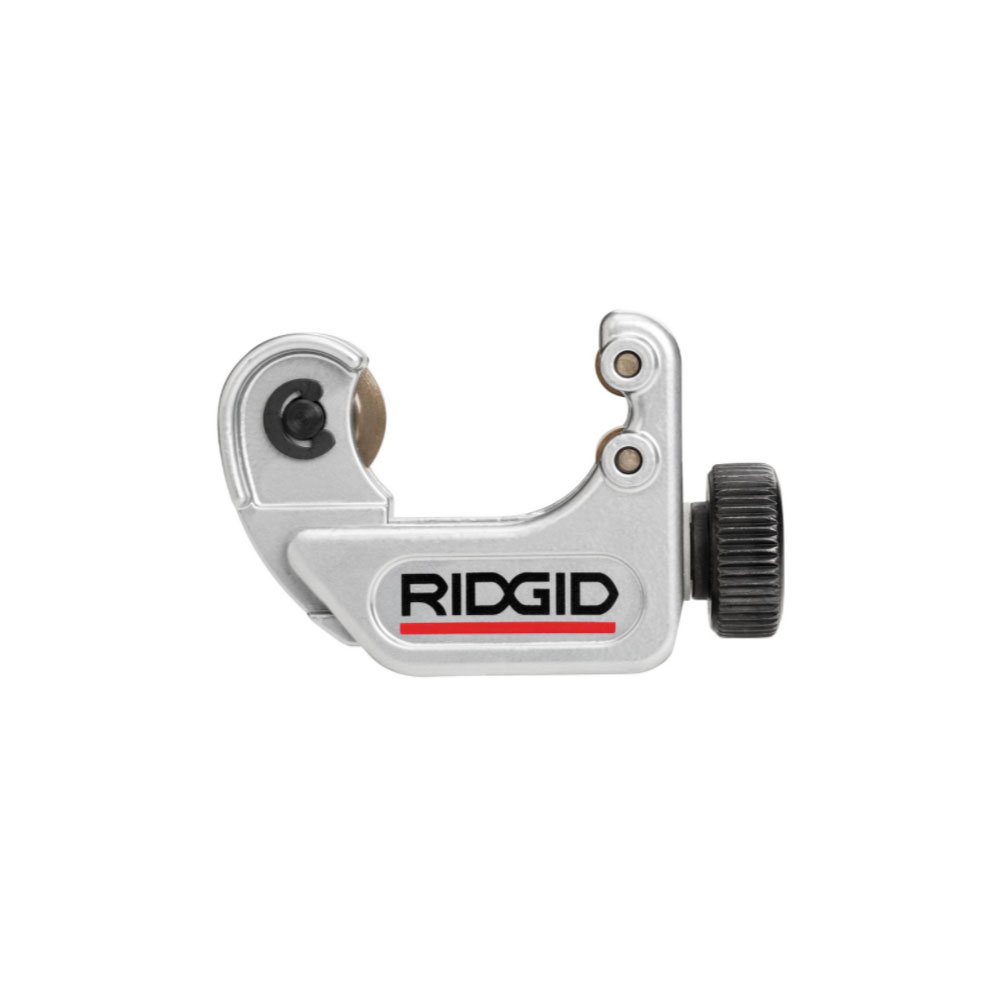

| 40617 | 101 Close Quarters Tubing Cutter | E-3469 | 1/4 - 1 1/8 | 6 - 28 | 1/2 | 0.23 |

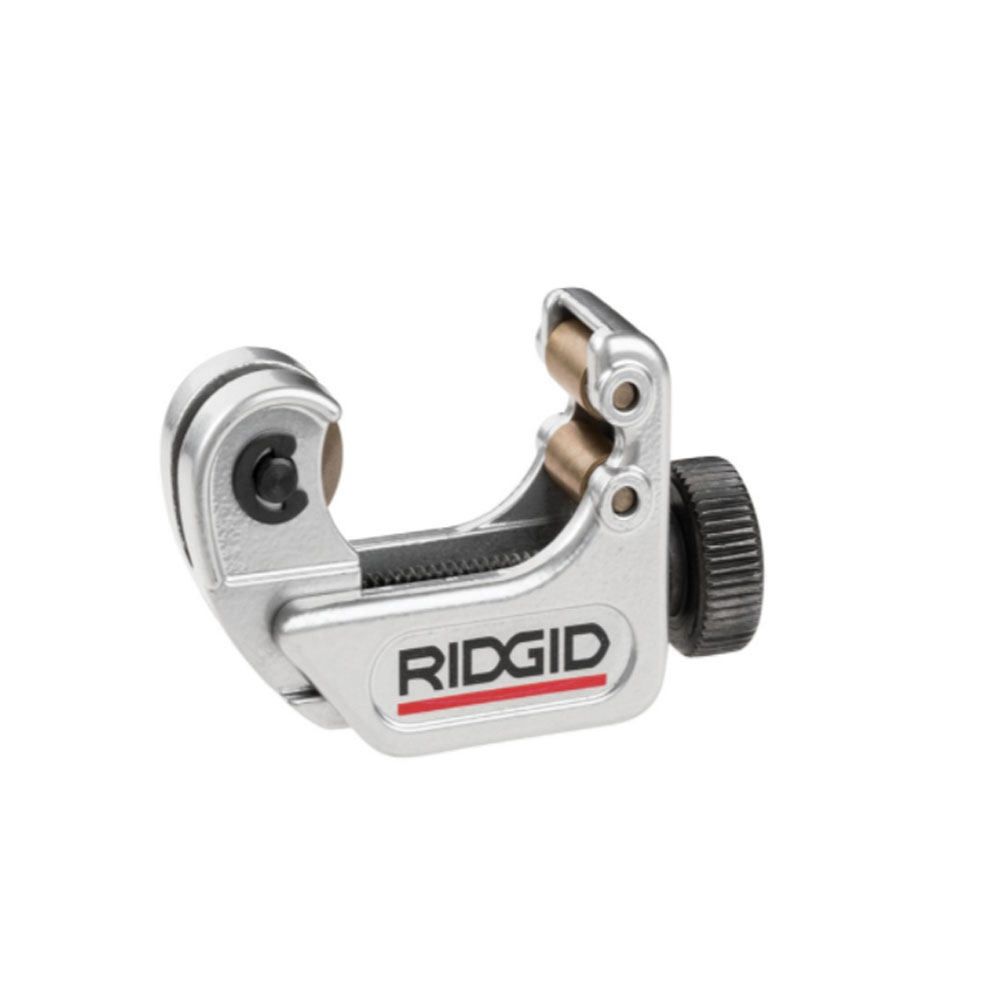

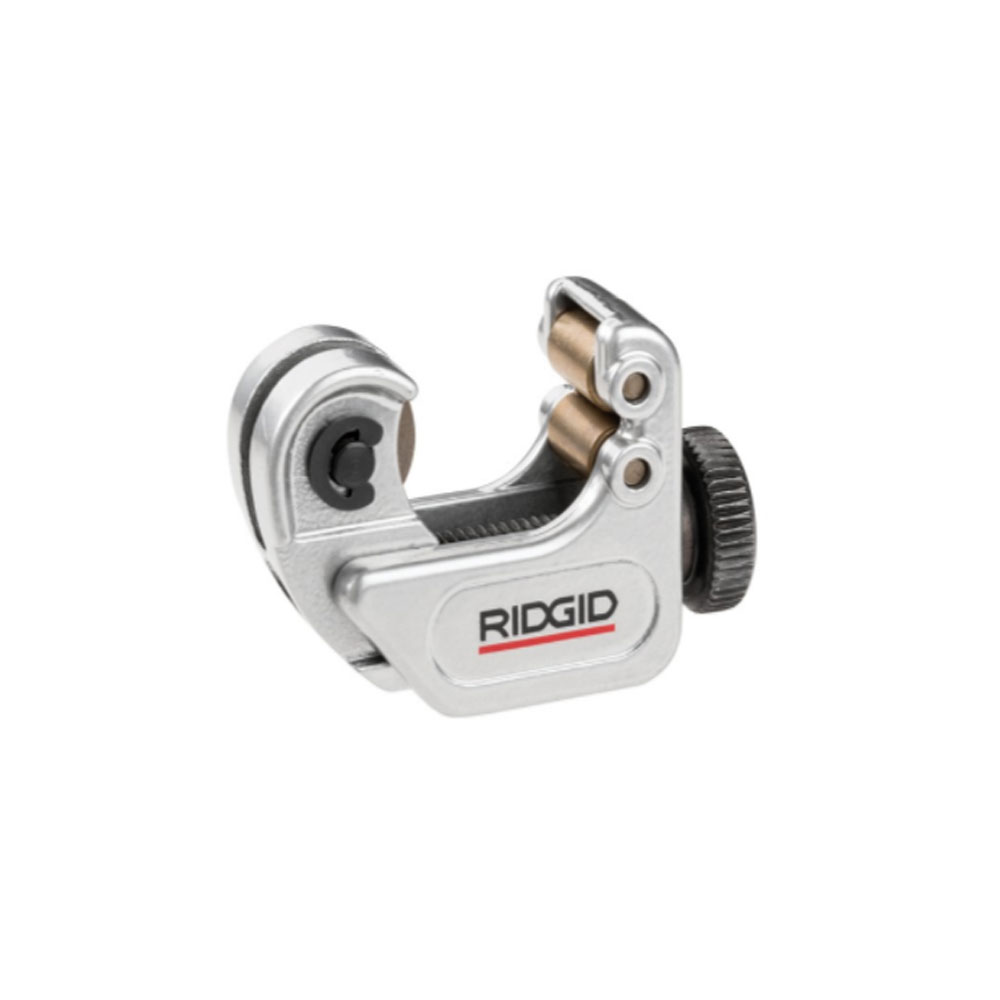

| 32975 | 103 Close Quarters Tubing Cutter | E-3469 | 1/8 - 5/8 | 3 - 16 | 1/3 | 0.15 |
| 32985 | 104 Close Quarters Tubing Cutter | E-3469 | 3/16 - 15/16 | 5 - 24 | 1/3 | 0.15 |

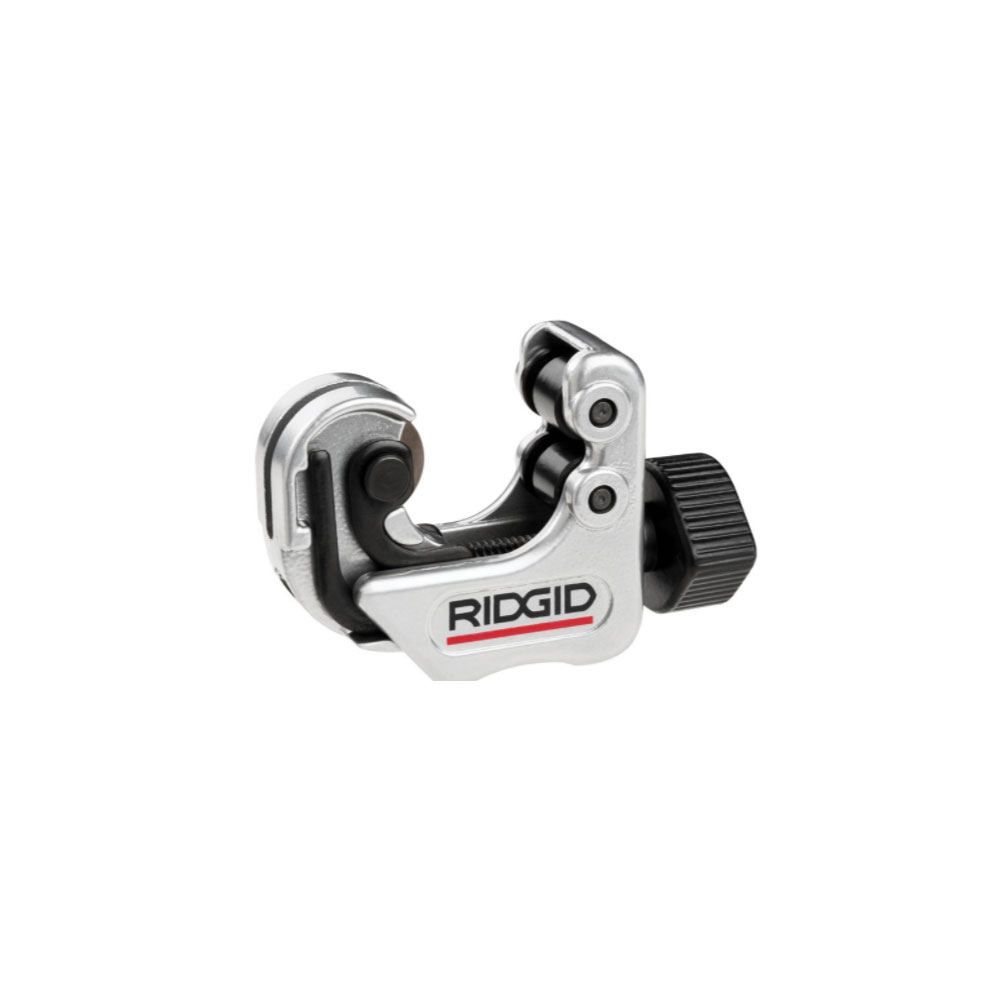

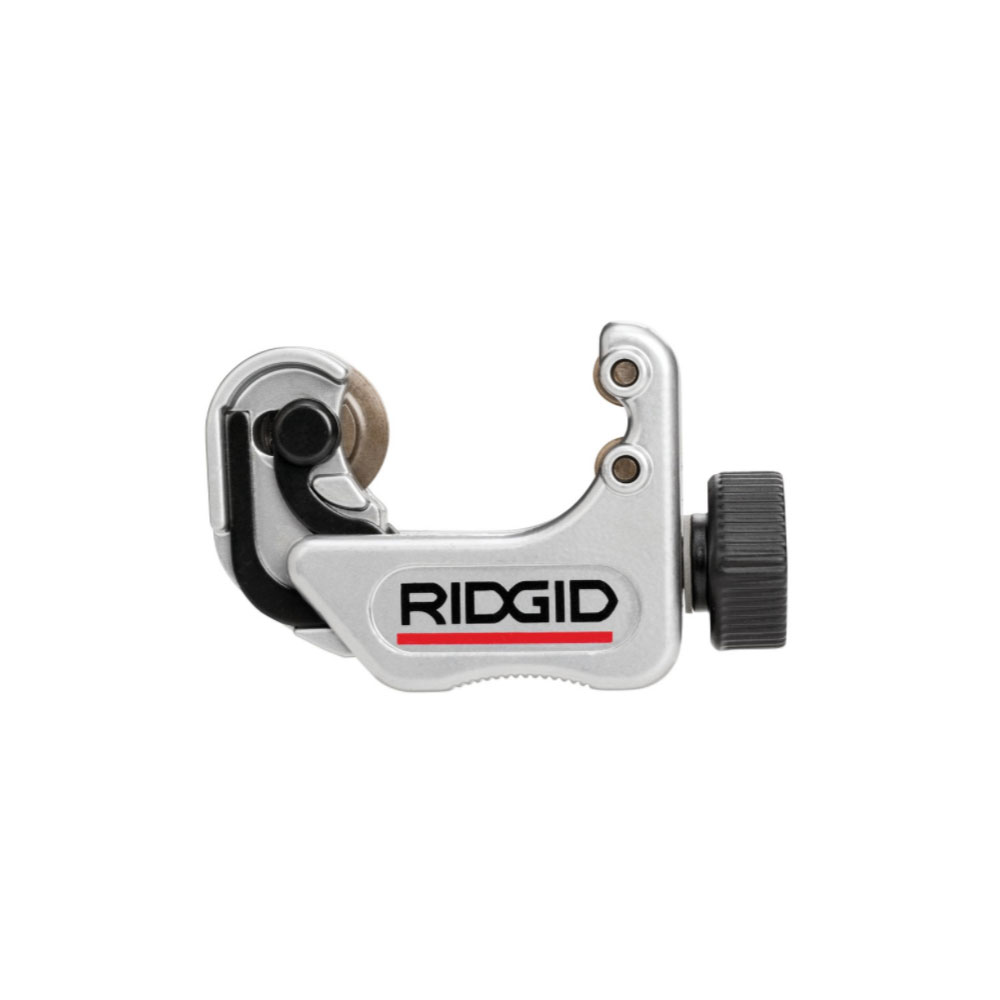

| 97787 | 117 Close Quarters AUTOFEED® Tubing Cutter | E-3469 | 3/16 - 15/16 | 5 - 24 | 1/3 | 0.15 |

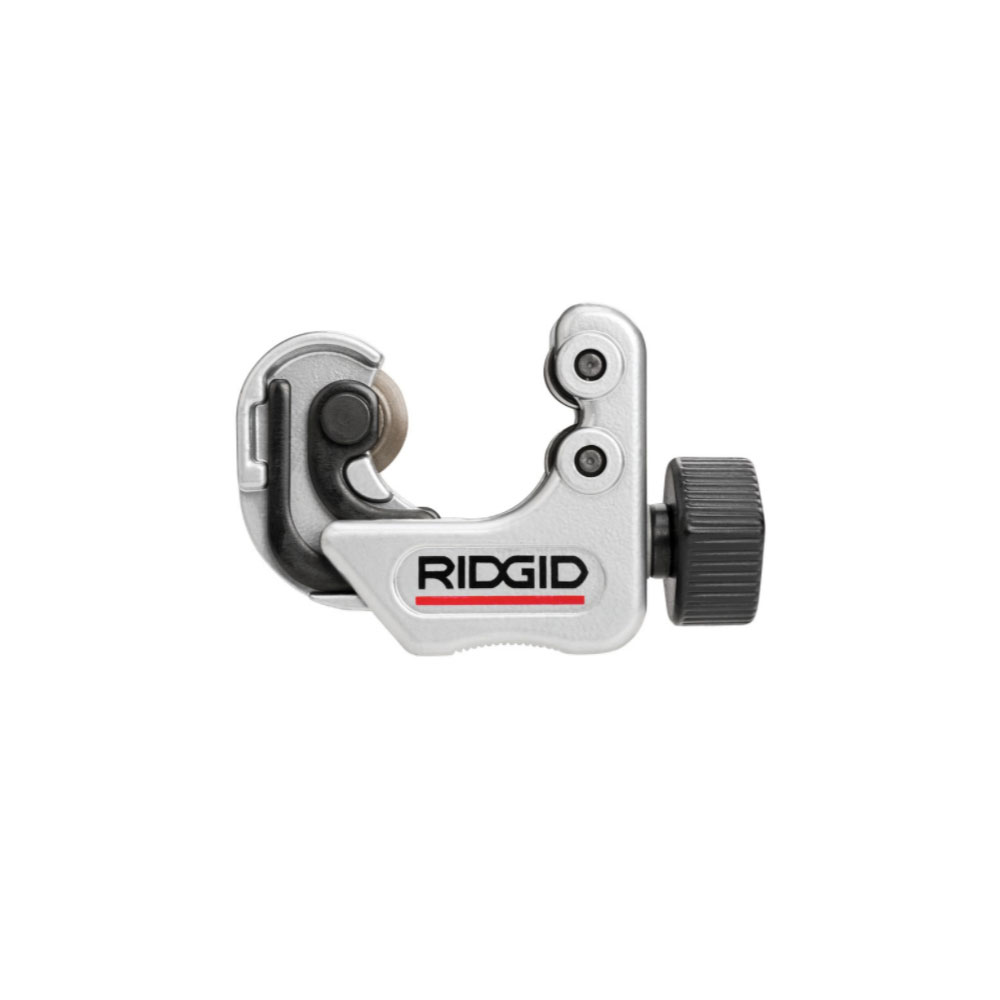

| 86127 | 118 Close Quarters AUTOFEED® Tubing Cutter | E-3469 | 1/4 - 1 1/8 | 6 - 28 | 5/8 | 0.26 |
| 21938 | 101-ML Close Quarters Cutter for Multilayer Tubing | E2155 | 1/4 - 1 1/8 | 6 - 28 | 1/3 | 0.15 |
| 75592 | 101-J Tubing Cutter | - | - | - | - | - |

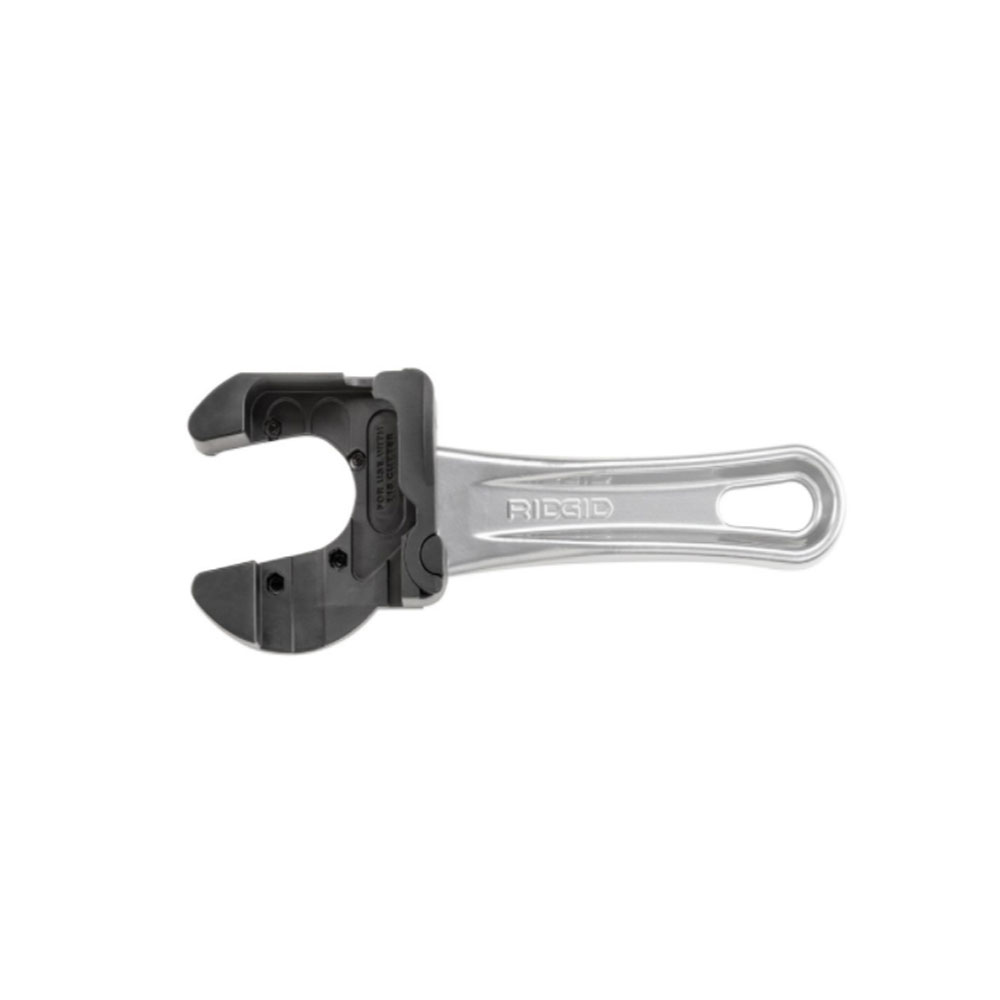

| 32933 | Ratchet Handle Only for 101 and 118 Tubing Cutter | - | - | 5/8 | 0.26 | |
- Rollers include grooves for close-to-flare cuts on models 101, 101J and 118.
- Strong, lightweight slide and wheel housing, and large knurled feed screw knob give easy control of cutting pressure for clean cuts.
- Models 117 and 118 include a self-feeding AUTOFEED® cutter wheel that automatically cuts after tightening the knob only once.
- The Model 118 features a special knob for easier tightening of the feedscrew.
- Model 101-ML is for multilayer tubing only.
- Brand: RIDGID
- Product Code: Close Quarters Tubing Cutters
- Catalog Number: 40617 - 32975 - 32985

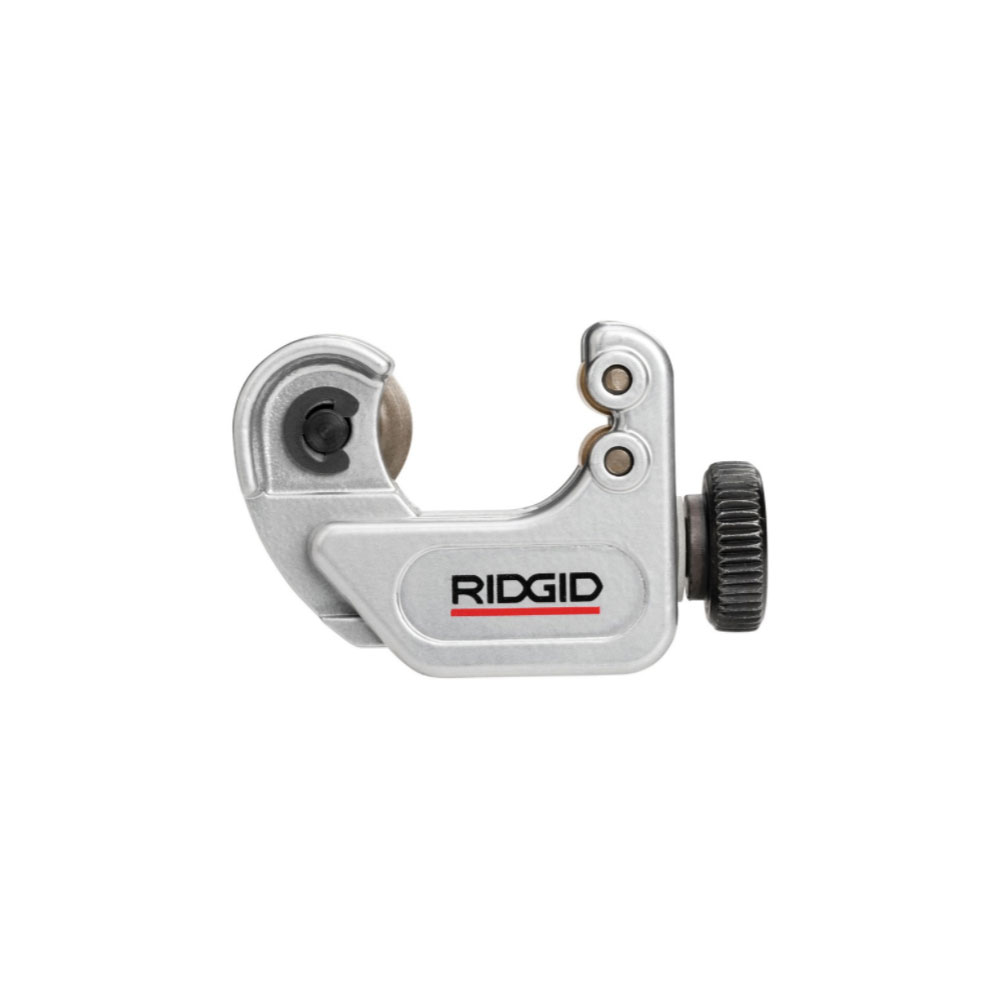

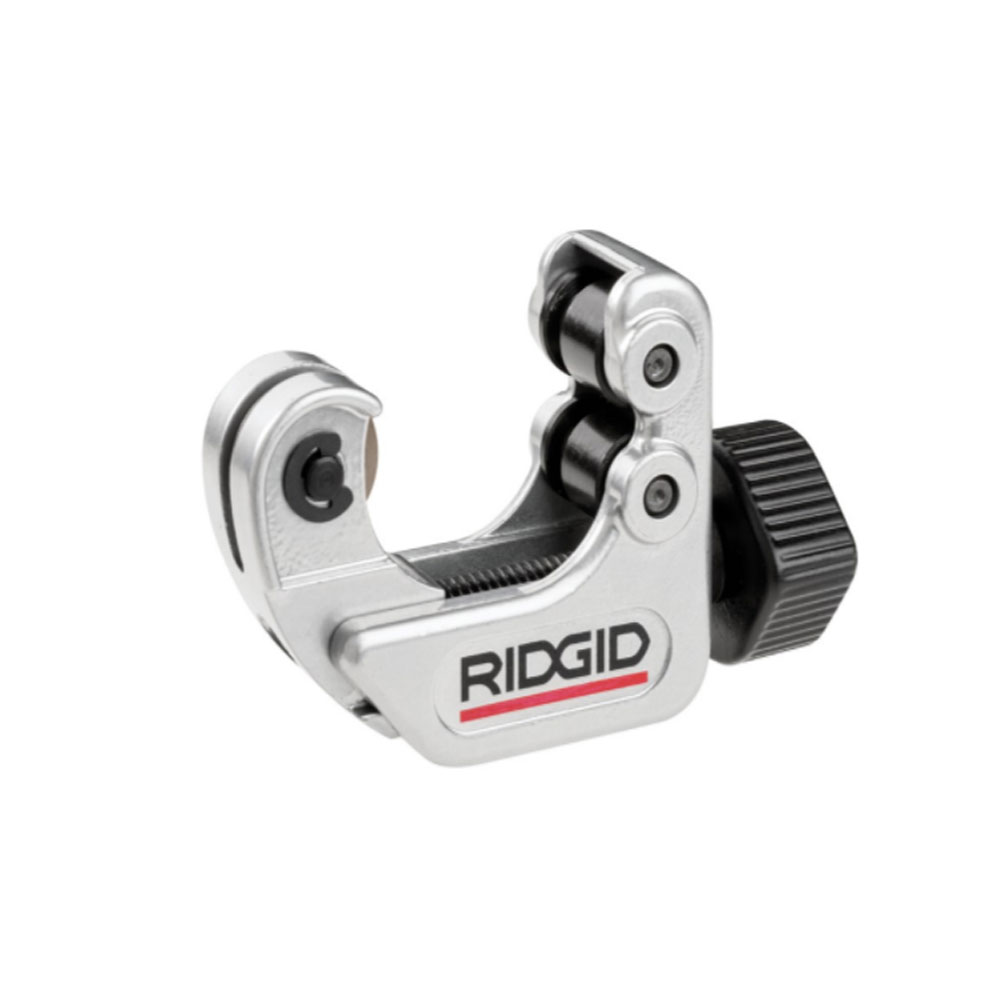

- Specifically designed for use in restricted spaces on small diameter, hard and soft copper, aluminum, brass and plastic tubing.
