CATALOG NUMBER |
MODEL NO. | DESCRIPTION | WEIGHT | |
| LB. | KG | |||
| 59175 | K-1000 | Rodder Machine, includes: – B-3542 Rod Driver – A-2704 Tool Driver – A-3567 Drive Pin – R-0 Rod Turner – A-4558 Torque Adapter – A-12 Coupling Pin Key – A-1 Left-Hand RIDGID Drain Cleaning Mitt – A-2 Right-Hand RIDGID Drain Cleaning Mitt | 160 | 75 |
| 84295 | K-1000 | Rodder Machine, same as above, plus: – 20 Sections of A-2475, 5⁄16" (8 mm) Rod, Total of 100' (30 m) – T-300 Spear Head Cutter – T-317 Auger – T-326 Pick-Up Tool | 210 | 95 |
|
RODS
|
||||
|
CATALOG NUMBER |
MODEL NO. | DESCRIPTION | WEIGHT | |
| LB. | KG | |||
| 60355 | A-2474 | 3' (0,9 m) Solid Sectional Rod, Includes: R-1 Male and R-2 Female Couplings | 1 1/4 | 0.6 |
| 60360 | A-2475 | 5' (1,5 m) Solid Sectional Rod, Includes: R-1 Male and R-2 Female Couplings | 1 3/4 | 0.8 |
| 60365 | A-2476 | 10' (3,0 m) Solid Sectional Rod, Includes: R-1 Male and R-2 Female Couplings | 3 | 1.4 |
|
ACCESSORIES
|
||||
|
CATALOG NUMBER |
MODEL NO. | DESCRIPTION | WEIGHT | |
| LB. | KG | |||
| 59835 | K-10 | Complete Set of Quick- Connect Rod Couplings: One Each R-1 and R-2 | 3/8 | 0.20 |
| 59560 | R-1 | Male Rod Coupling | 1/4 | 0.10 |
| 59555 | R-2 | Female Rod Coupling | 1/8 | 0.10 |
| 61875 | R-7 | Male Tool Coupling, connects Tool Adapter to Rodding Tool | 1/2 | 0.20 |
| 61885 | R-8 | Female Tool Coupling, connects Tool to Tool Adapter | 1/2 | 0.20 |
| 60700 | A-2704 | Tool Adapter, includes R-2 and R-7 Couplings | 2 1/4 | 1.00 |
| 62170 | B-3542 | Rod Holder | 3 3/8 | 1.50 |
| 62815 | R-0 | Rod Turner, used to manually turn Rods in short runs | 3 1/4 | 1.50 |
| 59205 | A-1 | Left-Hand RIDGID Drain Cleaning Mitt | 1/2 | 0.20 |
| 59295 | A-2 | Right-Hand RIDGID Drain Cleaning Mitt | 1/2 | 0.20 |
| 59360 | A-3 | Tool Box | 5 | 2.30 |
| 59225 | A-12 | 1/2" Cable Pin Key | 1/2 | 0.20 |
|
TOOLS
|
||||
|
CATALOG NUMBER |
MODEL NO. | DESCRIPTION | WEIGHT | |
| LB. | KG | |||
| 62045 | T-300 | Spear Head | 1 7/8 | 0.80 |
| 62050 | T-301 | Round Stock Corkscrew, 11⁄2" (40 mm) | 1 1/4 | 0.60 |
| 62055 | T-302 | Round Stock Corkscrew, 2" (50 mm) | 1 1/2 | 0.70 |
| 62060 | T-303 | Round Stock Corkscrew, 21⁄2" (65 mm) | 1 3/4 | 0.80 |
| 62065 | T-304 | Round Stock Corkscrew, 3" (75 mm) | 1 3/4 | 0.80 |
| 62075 | T-306 | Double Corkscrew, 3" (75 mm) | 2 1/4 | 1.00 |
| 62080 | T-307 | Double Corkscrew, 4" (110 mm) | 2 1/2 | 1.10 |
| 62095 | T-310 | Square Stock Corkscrew, 4" (110 mm) | 2 1/2 | 1.10 |
| 62105 | T-312 | Square Stock Corkscrew, 6" (150 mm) | 3 3/4 | 1.70 |
| 62370 | T-313 | Square Stock Corkscrew, 8" (200 mm) | 6 1/2 | 3.00 |
| 62110 | T-316 | Auger, 3" (75 mm) | 3 | 1.40 |
| 62115 | T-317 | Auger, 4" (110 mm) | 3 1/2 | 1.50 |
| 62125 | T-319 | Auger, 6" (150 mm) | 5 | 2.30 |
| 62385 | T-320 | Auger, 8" (200 mm) | 8 1/2 | 3.90 |
| 62390 | T-321 | Auger, 10" (250 mm) | 9 1/2 | 4.30 |
| 62140 | T-326 | Pick-Up Tool | 1 | 0.50 |
|
THE FOLLOWING
HEAVY-DUTY CABLE TOOLS ARE ALSO RECOMMENDED FOR USE WITH ROD.
|
||||
|
CATALOG NUMBER |
MODEL NO. | DESCRIPTION | REPLAC. BLADE(S) | |
| 61800 | T-2 | Heavy-Duty Straight Auger | - | |
| 61790 | T-4 | Heavy-Duty Funnel Auger | - | |
| 63200 | T-7 | Hook Auger | - | |
| 61960 | T-16 | Spiral Bar Cutter, 4" (110 mm) | 97855 | |
| 61850 | T-17 | Spiral Bar Cutter, 6" (150 mm) | 97955 | |
| 61855 | T-18 | Spiral Bar Cutter, 8" (200 mm) | 97960 | |
| 63085 | T-23 | Spiral Sawtooth Cutter, 4" (110 mm) | 97850 | |
| 59765 | T-24 | 4-Blade Cutter, 21⁄2" (65 mm) | 97940 | |
| 59770 | T-25 | 4-Blade Cutter, 3 1⁄2" (89 mm) | 97975 | |
| 59775 | T-26 | 4-Blade Cutter, 4 1⁄2" (114 mm) | 97805 | |
| 59780 | T-26A | 4-Blade Cutter, 5 1⁄2" (140 mm) | 97980 | |

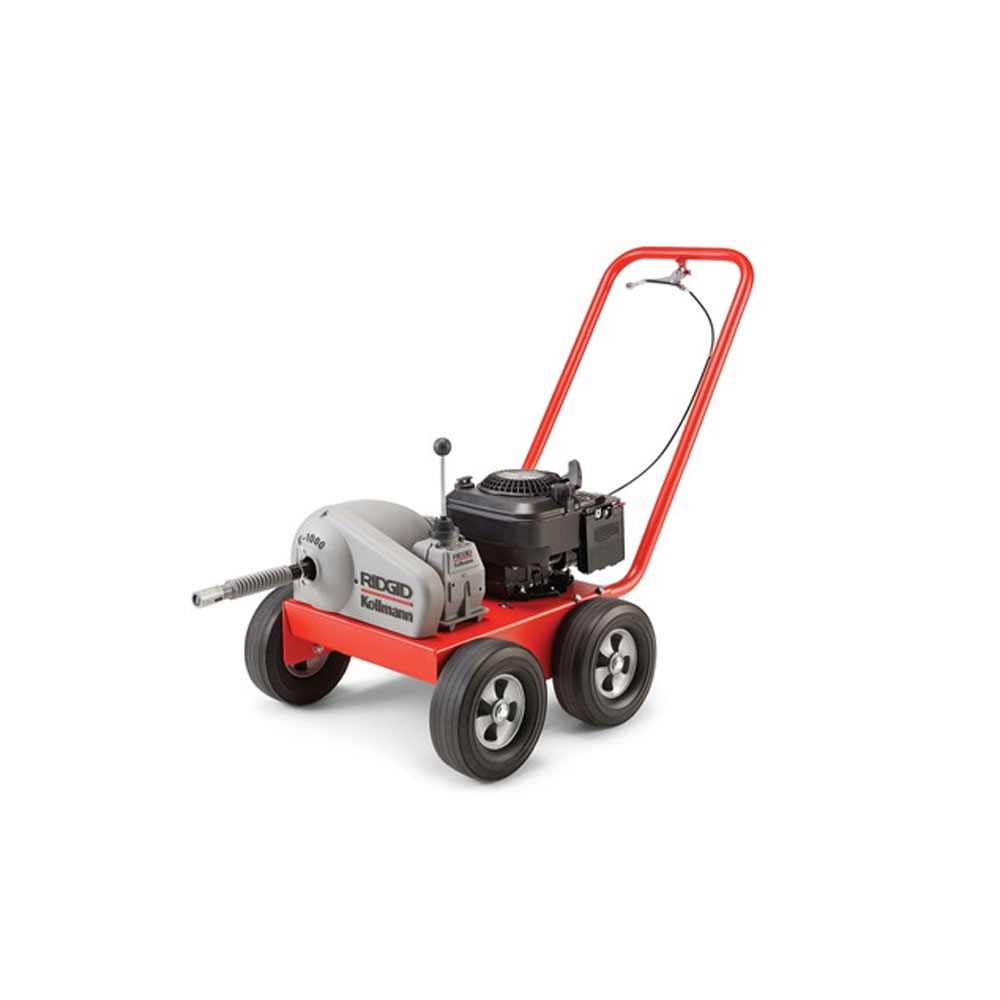

- A rugged, compact machine suited for straight main line work in municipalities, universities, institutions and industry. Drives sectional sewer rods through long, straight runs of larger diameter pipe – up to 500 feet (150 m).
- Equipped with a 6 HP gasoline engine and forward/reverse transmission. Rod rotates at 133 RPM in forward and reverse at full throttle.
- Spring-loaded throttle control is hand operated. Varies rod speed within range. Returns engine speed to idle and disengages clutch when operator releases throttle.
- Adjustable torque limiter minimizes kinking of rods and excessive torque through transmission system.
- Large 10" (250 mm) wheels on frame for optimal transport.
- Includes A-1 RIDGID® drain cleaning mitt and operator's manual
- Brand: RIDGID
- Product Code: K-1000
- Catalog Number: 59175 - 84298 - 60355
- 8" to 24" (200 to 610mm) Drain/Sewer Lines
