CATALOG NUMBER |
MODEL NO. | DESCRIPTION | WEIGHT | |||
| LB. | KG | |||||
| 62587 | KJ-1350 | KJ-1350 Standard Jetter with Pulse: H-21, H-22, and H-24 1/8" NPT Nozzles, 25' x 1/8" (7.6 m x 3.2 mm) Sink Trap Hose, Nylon Storage Bag, Nozzle Cleaning Tool | 70 | 31.7 | ||
| 62597 | KJ-1350-C | Above With: H-10 Cart, 100' (30.5 m) x 1/4" (6.4 mm) Trap Hose | 120 | 54.4 | ||
| 63107 | KJ-1350-2 | KJ-1350 Jetter with Dual Pulse: H-21, H-22, and H-24 1/8" NPT Nozzles, 50' x 1/8" (15.2 m x 3.2 mm) Sink Trap Hose, Nylon Storage Bag, Nozzle Cleaning Tool | 72 | 32.7 | ||
| 63112 | KJ-1350-2C | Above With: H-10 Cart, 100' (30.5 m) x 1/4" (6.4 mm) Trap Hose | 122 | 55.3 | ||
|
JETTER NOZZLES
|
||||||
|
CATALOG NUMBER |
MODEL NO. | DESCRIPTION | FEMALE NPT THREAD (IN.) | |||
| 64707 | H-21 | KJ-1350 Propulsion Nozzle | 1/8 | |||
| 64712 | H-22 | KJ-1350 Penetrating Nozzle | 1/8 | |||
| 64717 | H-24 | Kj-1350 Drop Head Nozzle | 1/8 | |||
| 64722 | H-31 | KJ-1350 Propulsion Nozzle | 1/4 | |||
| 82832 | H-25 | KJ-1350 Spinning Nozzle | 1/8 | |||
| 64727 | H-32 | KJ-1350 Penetrating Nozzle | 1/4 | |||
|
TRAP LEADERS
|
||||||
|
CATALOG NUMBER |
MODEL NO. | DESCRIPTION | FEMALE NPT THREAD (IN.) | MALE NPT THREAD (IN.) | ||
| 50002 | HL-1 | Flexible Leader, 3⁄16" - Fits 1/8" & 3/16" Hoses | 1/8 | 1/8 | ||
| 50007 | HL-2 | Flexible Leader, 1/4" - Fits 1/4" & 3/8" Hoses | 1/8 | 1/8 | ||
|
JETTER HOSES
|
||||||
|
CATALOG NUMBER |
MODEL NO. | DESCRIPTION | MALE NPT THREAD (IN.) | HOSE I.D. (IN.) | HOSE O.D. (IN.) | |
| 47597 | H-1435 | 3⁄16" x 35' (11 m) | 1/8 | 3/16 | 1/4 | |
| 47602 | H-1450 | 3⁄16" x 50' (15 m) | 1/8 | 3/16 | 1/4 | |
| 47607 | H-1250 | 1⁄4" x 50' (15 m) | 1/4 | 1/4 | 1/2 | |
| 49272 | H-1475 | 3⁄16" x 75' (23 m) | 1/8 | 3/16 | 1/4 | |
| 49277 | H-1400 | 3⁄16" x 100' (30 m) | 1/8 | 3/16 | 1/4 | |
| 49487 | H-1215 | 1⁄4" x 150' (46 m) | 1/4 | 1/4 | 1/2 | |
| 51587 | H-1211 | 1⁄4" x 100' (33 m) | 1/4 | 1/4 | 1/2 | |
| 51597 | H-1220 | 1⁄4" x 200' (61 m) | 1/4 | 1/4 | 1/2 | |
| 52957 | H-1825 | 1/8"x 25' Sink Trap Hose | 1/8 | 1/8 | 3/16 | |
| 53037 | H-1850 | 1/8 x 50' Sink Trap | 1/8 | 1/8 | 3/16 | |
| 64732 | H-1415 | 3⁄16" x 150' (45,5 m) | 1/8 | 3/16 | 1/4 | |
|
ACCESSORIES
|
||||||
|
CATALOG NUMBER |
MODEL NO. | DESCRIPTION | ||||
| 41937 | - | Leather Drain Cleaning Gloves | ||||
| 47542 | H-21 | H-21 Nozzle Cleaning Tool | ||||
| 48367 | H-25 | H-25 Winterizing Kit | ||||
| 51572 | H-1235 | H-1235 1/2"x35' Wash Wand Hose | ||||
| 62592 | H-10 WH | H-10 WH Cart with Hose Reel and 100' x 3/16" Trap Hose | ||||
| 62757 | - | Nylon Storage Bag | ||||
| 62882 | H-5 | H-5 Mini Hose Reel | ||||
| 62887 | HP-EL | Pressure Wash Package, Electric Jetters | ||||
| 62892 | H-30A | H-30A KJ-1350 Adapter to Fit H-30 Cart | ||||
| 64697 | H-10 | H-10 Cart with Hose Reel | ||||
| 64702 | HW-EL | HW-EL Pressure Wash (Gun only) | ||||
| 64737 | H-30 | H-30 Cart with Hose Reel | ||||
| 67187 | H-32 | H-32 Jet Vac | ||||
| 70032 | - | PVC Drain Cleaning Gloves | ||||
- Powerful: Actual working pressure of 1350 psi (93 bar) and flow of 1.4 GPM (5.3 l/min) for fast, effective cleaning of lines.
- Pulse Action: Activate the Model KJ-1350's plus action to easily negotiate difficult bends and traps. The Model KJ-1350-2 has a second level of pulse.

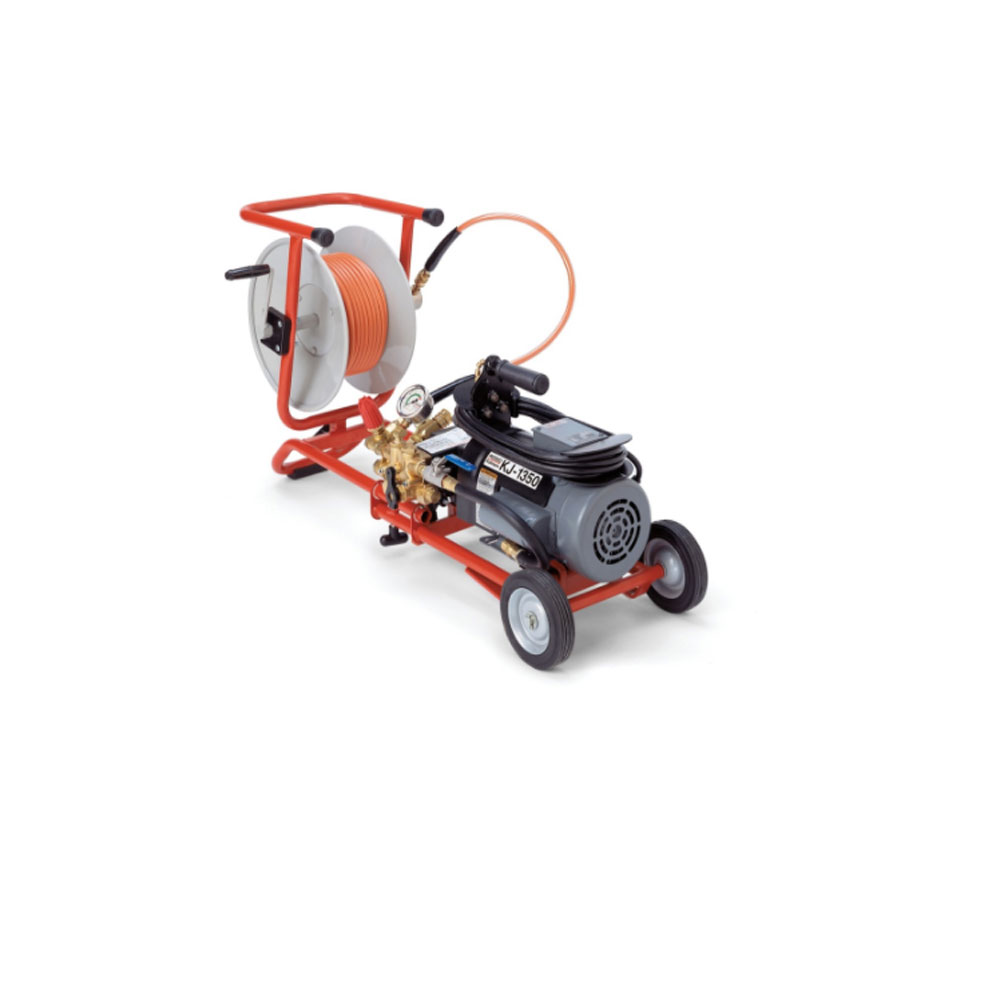

- Portable and Compact: The optional H-10 Cart rolls the jetter and hose to the job site. Jetter and hose reel are easily removed from the cart in seconds for hard to reach drains or remote storage.
- The compact cart offers a retractable handle and swivel hose reel minimizing storage space.
- Optional adapter allows the KJ-1350 to be mounted on the upright H-30 Cart.
- Electrical Requirement: The 1.5 HP motor draws a maximum of 14 Amps and can run on most standard 115V circuits.
- Easy to use: Thrust propels the hose down the line. You simply guide the hose into the drain.
- High Quality: Duplex pump with corrosion-resistant, forged brass head. New pressure control valve allows quick and easy pressure adjustment.
- Dependable: Reduced number of fittings, hoses and parts minimizes leaks and down time keeping you on the job.
- Versatile: Optional power washer package cleans cables, tools and other heavily soiled equipment.
- CSA approved. Approved to UL standards (NRTLC).
- Brand: RIDGID
- Product Code: KJ-1350
- Catalog Number: 62587 - 62597 - 63107
- 1 1/4" to 4" (32 mm to 100 mm) Drain Lines
- This jetter propels a highly flexible hose through 1 1/4" to 4" (32 mm to 100 mm) lines–blasting through sludge, soap and grease blockages. As you pull the hose back, it power scrubs the line, flushing debris away and restoring drain lines to their free-flowing capacity.
