CATALOG NUMBER |
MODEL NO. | DESCRIPTION | WEIGHT | |||
| LB. | KG | |||||
| 62687 | KJ-1750 | KJ-1750 Jetter with Dual Pulse: H-41, H-42, and H-44 1/8" NPT Nozzles, H-51 and H-52 1/4" NPT Nozzles, 50' x 1/8" (15.2 m x 3.2 mm) Sink Trap Hose, Nylon Storage Bag, Nozzle Cleaning Tool | 75 | 34.0 | ||
| 62697 | KJ-1750-C | Above With: H-30 Cart, 110' x 1/2" (33.5 m x 6.4 mm) Jet Hose | 155 | 70.3 | ||
| 67332 | 67332 | 62687 with: H-10 Cart, 100' x 1/4" (30.5 m x 6.4 mm) Trap Hose | 125 | 56.7 | ||
|
JETTER NOZZLES
|
||||||
|
CATALOG NUMBER |
MODEL NO. | DESCRIPTION | FEMALE NPT THREAD (IN.) | |||
| 64742 | H-41 | KJ-1750 Propulsion Nozzle | 1/8 | |||
| 64747 | H-42 | KJ-1750 Penetrating Nozzle | 1/8 | |||
| 64752 | H-44 | KJ-1750 Drop Head Nozzle | 1/8 | |||
| 64757 | H-51 | KJ-1750 Propulsion Nozzle | 1/4 | |||
| 64762 | H-52 | KJ-1750 Penetrating Nozzle | 1/4 | |||
| 82837 | H-45 | KJ-1750 Spinning Nozzle | 1/8 | |||
|
JETTER HOSES
|
||||||
|
CATALOG NUMBER |
MODEL NO. | DESCRIPTION | MALE NPT THREAD (IN.) | HOSE I.D. (IN.) | HOSE O.D. (IN.) | |
| 47597 | H-1435 | 3⁄16" x 35' (11 m) | 1/8 | 3/16 | 1/4 | |
| 47602 | H-1450 | 3⁄16" x 50' (15 m) | 1/8 | 3/16 | 1/4 | |
| 47607 | H-1250 | 1⁄4" x 50' (15 m) | 1/4 | 1/4 | 1/2 | |
| 49272 | H-1475 | 3⁄16" x 75' (23 m) | 1/8 | 3/16 | 1/4 | |
| 49277 | H-1400 | 3⁄16" x 100' (30 m) | 1/8 | 3/16 | 1/4 | |
| 49487 | H-1215 | 1⁄4" x 150' (46 m) | 1/4 | 1/4 | 1/2 | |
| 51587 | H-1211 | 1⁄4" x 100' (33 m) | 1/4 | 1/4 | 1/2 | |
| 51597 | H-1220 | 1⁄4" x 200' (61 m) | 1/4 | 1/4 | 1/2 | |
| 52957 | H-1825 | 1/8"x 25' Sink Trap Hose | 1/8 | 1/8 | 3/16 | |
| 53037 | H-1850 | 1/8 x 50' Sink Trap | 1/8 | 1/8 | 3/16 | |
| 64732 | H-1415 | 3⁄16" x 150' (45,5 m) | 1/8 | 3/16 | 1/4 | |
|
TRAP LEADERS
|
||||||
|
CATALOG NUMBER |
MODEL NO. | DESCRIPTION | FEMALE NPT THREAD (IN.) | MALE NPT THREAD (IN.) | ||
| 50002 | HL-1 | Flexible Leader, 3⁄16" - Fits 1/8" & 3/16" Hoses | 0 | 0 | ||
| 50007 | HL-2 | Flexible Leader, 1/4" - Fits 1/4" & 3/8" Hoses | 0 | 0 | ||
|
ACCESSORIES
|
||||||
|
CATALOG NUMBER |
MODEL NO. | DESCRIPTION | ||||
| 47542 | H-21 | H-21 Nozzle Cleaning Tool | ||||
| 48367 | H-25 | H-25 Winterizing Kit | ||||
| 51572 | H-1235 | H-1235 1/2"x35' Wash Wand Hose | ||||
| 62592 | H-10 WH | H-10 WH Cart with Hose Reel and 100' x 3/16" Trap Hose | ||||
| 62877 | H-30 WH | H-30 WH Cart with Hose Reel and 110' x 1/4" (33 m x 4.8 mm) Jet Hose | ||||
| 62882 | H-5 | H-5 Mini Hose Reel | ||||
| 62887 | HP-EL | Pressure Wash Package, Electric Jetters | ||||
| 62897 | H-1235 | H1235A KJ-1750 Adapter to Fit H-10 Cart | ||||
| 64697 | H-10 | H-10 Cart with Hose Reel | ||||
| 64702 | HW-EL | HW-EL Pressure Wash (Gun only) | ||||
| 64737 | H-30 | H-30 Cart with Hose Reel | ||||
| 67187 | H-32 | H-32 Jet Vac | ||||
| 70032 | - | PVC Drain Cleaning Gloves | ||||
| 41937 | - | Leather Drain Cleaning Gloves | ||||
| 62757 | - | Nylon Storage Bag | ||||
- Powerful: Actual working pressure of 1750 psi and flow of 1.4 GPM (5.3 l/min) for fast, effective cleaning of lines.
- Pulse Action: Two levels of pulse are standard. Activate the KJ-1750’s pulse action to easily negotiate difficult bends and traps.

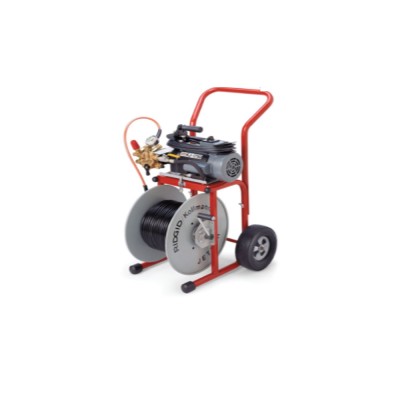

- Portable: The optional H-30 Cart rolls the jetter and hose to the job site. The jetter is easily removed from the cart in seconds for hard to reach drain or for remote storage. Optional adapter allows the KJ-1750 to be mounted on the compact H-10 Cart.
- Electrical Requirement: The 2.0 HP motor draws a maximum of 17 Amps which requires a 20 Amp, 115V circuit.
- Easy to use: Thrust propels the hose down the line. You simply guide the hose into the drain.
- High Quality: Duplex pump with corrosion-resistant, forged brass head. New pressure control valve allows quick and easy pressure adjustment.
- Dependable: Reduced number of fittings, hoses and parts minimizes leaks and down time keeping you on the job.
- Versatile: Optional power washer package cleans cables, tools and other heavily soiled equipment.
CSA approved. Approved to UL standards (NRTLC).
- Brand: RIDGID
- Product Code: KJ-1750
- Catalog Number: 62687 -62697 - 67332
- 1 1/4" to 4" (32 to 100mm) Drain Lines
- This jetter propels a highly flexible hose through 1 1/4" to 4" (32 to 100mm) lines–blasting through sludge, soap and grease blockages. As you pull the hose back, it power scrubs the line, flushing debris away and restoring drain lines to their free-flowing capacity.
