CATALOG NUMBER |
MODEL NO. | DESCRIPTION | WEIGHT | |||
| LB. | KG | |||||
| 63877 | KJ-2200 | KJ-2200 Jetter with Pulse – H-61, H-62, and H-64 1⁄8" NPT Nozzles – H-71 and H-72 1⁄4" NPT Nozzles – 75' x 3⁄16" (22.8 m x 4.8 mm) Trap Hose – FV-1 Foot Valve – Nozzle Cleaning Tool – H-1235 Wash Wand Hose 1⁄2" x 35' (10.7 m x 12.7 mm) | 65 | 29.5 | ||
| 63882 | KJ-2200-C | Above With: – H-30 Cart – 110' x 1⁄4" (33 m x 4.8 mm ) Jet Hose | 145 | 65.8 | ||
|
JETTER NOZZLES
|
||||||
|
CATALOG NUMBER |
MODEL NO. | DESCRIPTION | HOSE I.D. (IN.) | FEMALE NPT THREAD (IN.) | ||
| 64772 | H-61 | Propulsion Nozzle | 3/16 | 1/8 | ||
| 64777 | H-62 | Penetrating Nozzle | 3/16 | 1/8 | ||
| 64782 | H-64 | Drop Head Nozzle | 3/16 | 1/8 | ||
| 82842 | H-65 | Spinning Nozzle | 3/16 | 1/8 | ||
| 64787 | H-71 | Propulsion Nozzle | 1/4 | 1/4 | ||
| 64792 | H-72 | Penetrating Nozzle | 1/4 | 1/4 | ||
| 82852 | H-75 | Spinning Nozzle | 1/4 | 1/4 | ||
|
JETTER HOSES
|
||||||
|
CATALOG NUMBER |
MODEL NO. | DESCRIPTION | HOSE I.D. (IN.) | HOSE O.D. (IN.) | MALE NPT THREAD (IN.) | |
| 47597 | H-1435 | 3⁄16" x 35' (11 m) | 3/16 | 1/4 | 1/8 | |
| 47602 | H-1450 | 3⁄16" x 50' (15 m) | 3/16 | 1/4 | 1/8 | |
| 49272 | H-1475 | 3⁄16" x 75' (23 m) | 3/16 | 1/4 | 1/8 | |
| 49277 | H-1400 | 3⁄16" x 100' (30 m) | 3/16 | 1/4 | 1/8 | |
| 47607 | H-1250 | 1⁄4" x 50' (15 m) | 1/4 | 1/2 | 1/4 | |
| 51587 | H-1211 | 1⁄4" x 100' (33 m) | 1/4 | 1/2 | 1/4 | |
| 49487 | H-1215 | 1⁄4" x 150' (46 m) | 1/4 | 1/2 | 1/4 | |
| 51597 | H-1220 | 1⁄4" x 200' (61 m) | 1/4 | 1/2 | 1/4 | |
| 64732 | H-1415 | 3⁄16" x 150' (45,5 m) | 3/16 | 1/4 | 1/8 | |
|
ACCESSORIES
|
||||||
|
CATALOG NUMBER |
MODEL NO. | DESCRIPTION | WEIGHT | |||
| LB. | KG | |||||
| 62882 | H-5 | H-5 Mini Hose Reel | - | - | ||
| 64737 | H-30 | H-30 Cart with Hose Reel | - | - | ||
| 62877 | H-30 WH | H-30 WH Cart with Hose Reel and 110' x 1/4" (33 m x 4.8 mm) Jet Hose | - | - | ||
| 64077 | HP-22 | HP-22 Pressure Wash Package for KJ-2200 | - | - | ||
| 64767 | HW-22 | HW-22 Wash Wand for KJ-2200 | - | - | ||
| 48157 | FV-1 | FV-1 Foot Valve | - | - | ||
| 66732 | HF-4 | HF-4 Quick Connect Hose (Reel to Foot Valve) | - | - | ||
| 48367 | H-25 | H-25 Winterizing Kit | - | - | ||
| 47542 | H-21 | H-21 Nozzle Cleaning Tool | - | - | ||
| 67187 | H-32 | H-32 Jet Vac | - | - | ||
| 70032 | - | PVC Drain Cleaning Gloves | 1/2 | 0.20 | ||
| 41937 | - | Leather Drain Cleaning Gloves | 1/2 | 0.20 | ||
| 51572 | H-1235 | H-1235 1/2"x35' Wash Wand Hose | - | - | ||
|
TRAP LEADERS
|
||||||
|
CATALOG NUMBER |
MODEL NO. | DESCRIPTION | MALE NPT THREAD (IN.) | FEMALE NPT THREAD (IN.) | ||
| 50002 | HL-1 | Flexible Leader, 3⁄16" - Fits 1/8" & 3/16" Hoses | 0 | 0 | ||
| 50007 | HL-2 | Flexible Leader, 1/4" - Fits 1/4" & 3/8" Hoses | 0 | 0 | ||
- Powerful - Actual working pressure of 2200 psi (150 bar) and flow of 2.4 GPM (9 l/min) for fast, effective cleaning of lines.
- Easy to Use - Thrust propels the hose down the line. You simply guide the hose into the drain.
- Pulse Action - Activate the KJ-2200’s pulse action to easily negotiate difficult bends and traps.
- Portable - The optional H-30 cart rolls the jetter and hose to the job site. The jetter is easily removed from the cart in seconds for hard to reach drains, indoor applications or remote storage.
- Convenient - Standard equipment includes FV-1 foot valve. It makes remote or indoor operation simple and safe. You control the jetting action at the drain while leaving the jetter outdoors.
- Quality & Dependability - Triplex pump with corrosion-resistant, forged brass head. Reduced number of fittings, hoses and parts minimizes leaks and down time – keeping you on the job.
- Versatile - Optional power washer package cleans cables, tools and other heavily soiled equipment.

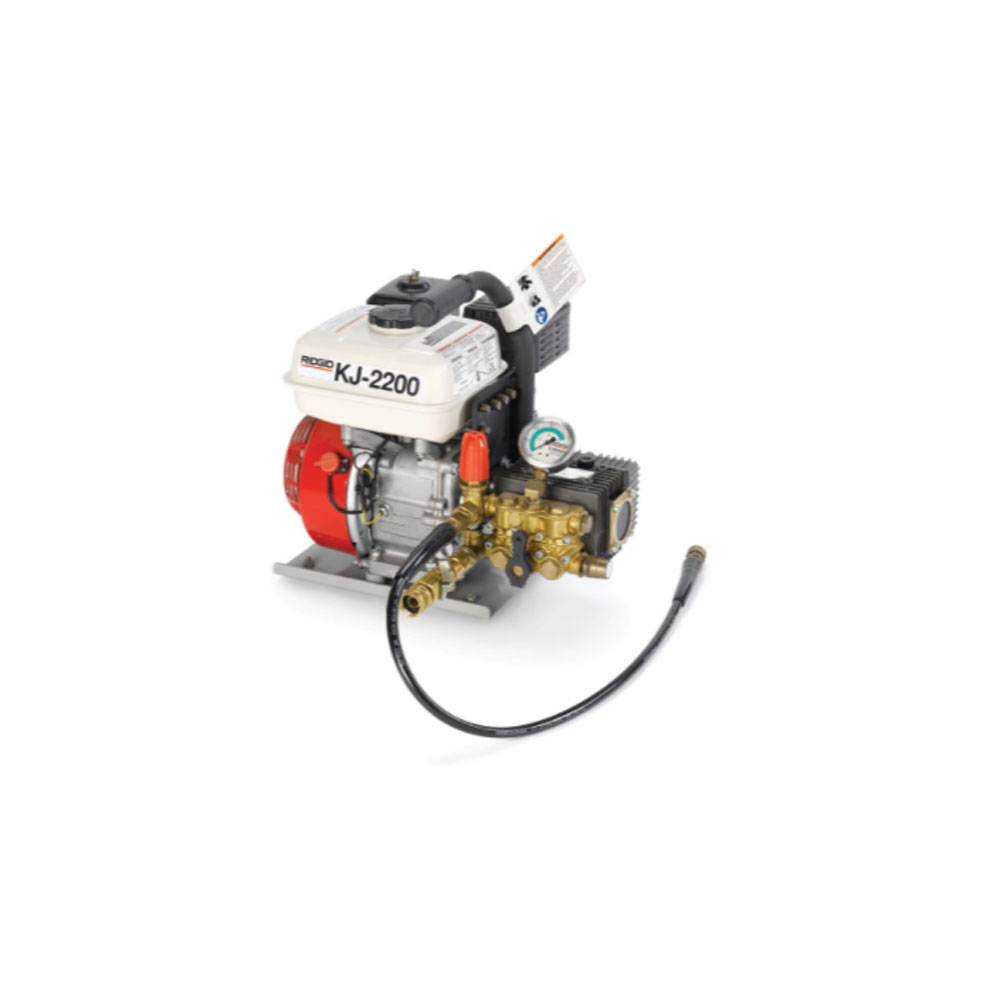

- New and improved 6.5 HP Recoil start gasoline engine starts easily. Features: ON/OFF switch; choke and throttle controls; easy access oil fill and dip stick.

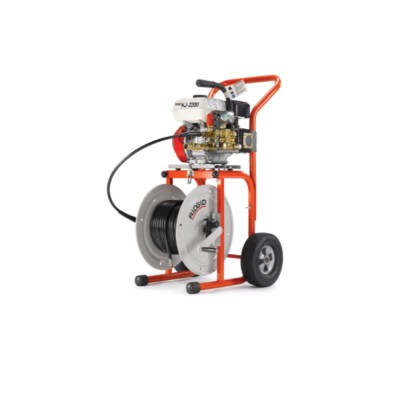

- Brand: RIDGID
- Product Code: KJ-2200
- Catalog Number: 63877 - 63882 - 64772
- 1 1/4" to 6" (32 to 150 mm) Drain Lines
- This jetter propels a highly flexible hose through 1 1⁄4" to 6" (32 mm to 150 mm) lines blasting through sludge, soap and grease blockages. As you pull the hose back, it power scrubs the line flushing debris away, restoring drain lines to their full, free-flowing capacity.
