| CATALOG NUMBER | MODEL NO. | DESCRIPTION | DRILL SIZE (IN.) | NOMINAL PIPE SIZE | THREAD (IN.) | WEIGHT | ||
| IN. | MM | LB. | KG | |||||
| 35815 | E-5112 | 1/8 Pipe Tap-NPT | 21/64 | 1/8 | 3 | 27 | 1/16 | 0.03 |
| 35820 | E-5113 | 1/4 Pipe Tap-NPT | 7/16 | 1/4 | 6 | 18 | 1/8 | 0.06 |
| 35825 | E-5114 | 3/8 Pipe Tap-NPT | 9/16 | 3/8 | 10 | 18 | 1/4 | 0.10 |
| 35830 | E-5115 | 1/2 Pipe Tap-NPT | 45/64 | 1/2 | 12 | 14 | 1/4 | 0.10 |
| 35835 | E-5116 | 3/4 Pipe Tap-NPT | 29/32 | 3/4 | 20 | 14 | 1/2 | 0.20 |
| 35840 | E-5117 | 1 Pipe Tap-NPT | 1 9/64 | 1 | 25 | 11 1/2 | 1 | 0.50 |
| 35845 | E-5118 | 1 1/4 Pipe Tap-NPT | 1 31/64 | 1 1/4 | 32 | 11 1/2 | 1 1/4 | 0.60 |
| 35850 | E-5119 | 1 1/2 Pipe Tap-NPT | 1 47/64 | 1 1/2 | 40 | 11 1/2 | 2 | 0.90 |
| 35855 | E-5120 | 2 Pipe Tap-NPT | 2 13/64 | 2 | 50 | 11 1/2 | 3 1/4 | 1.50 |

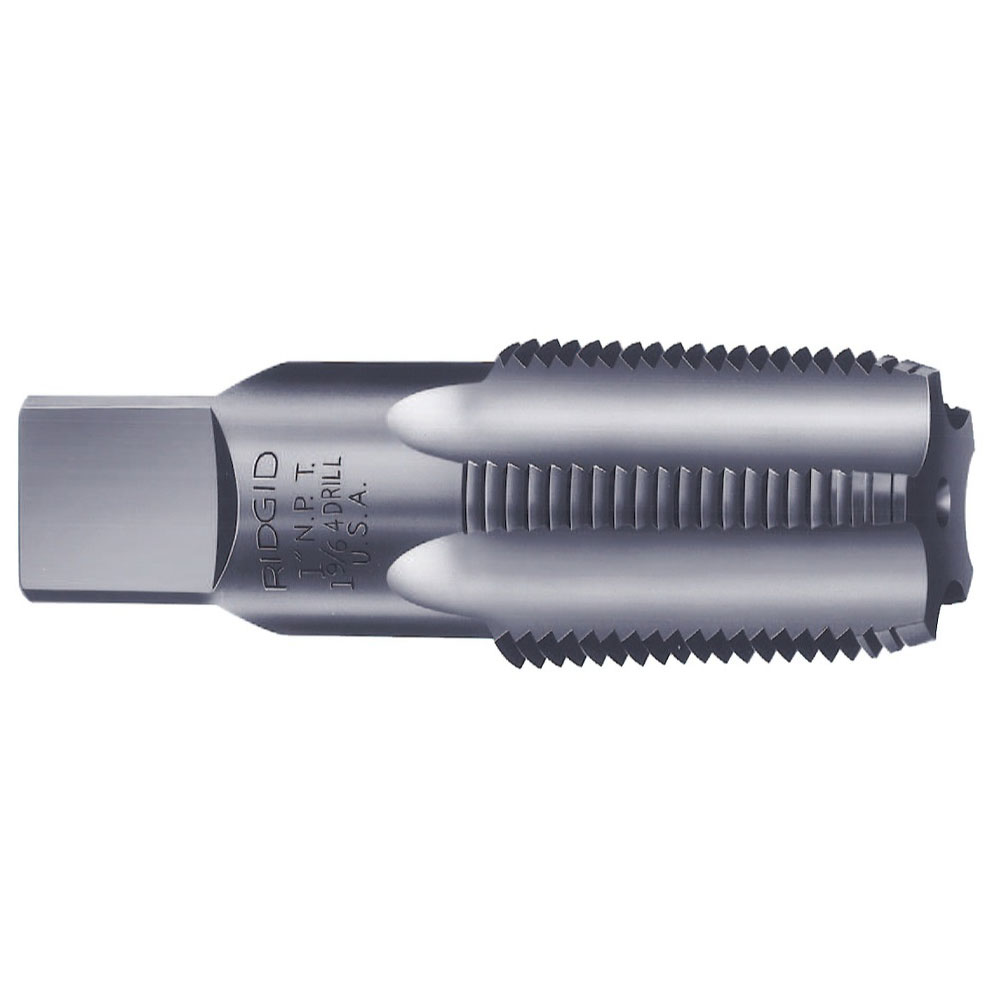

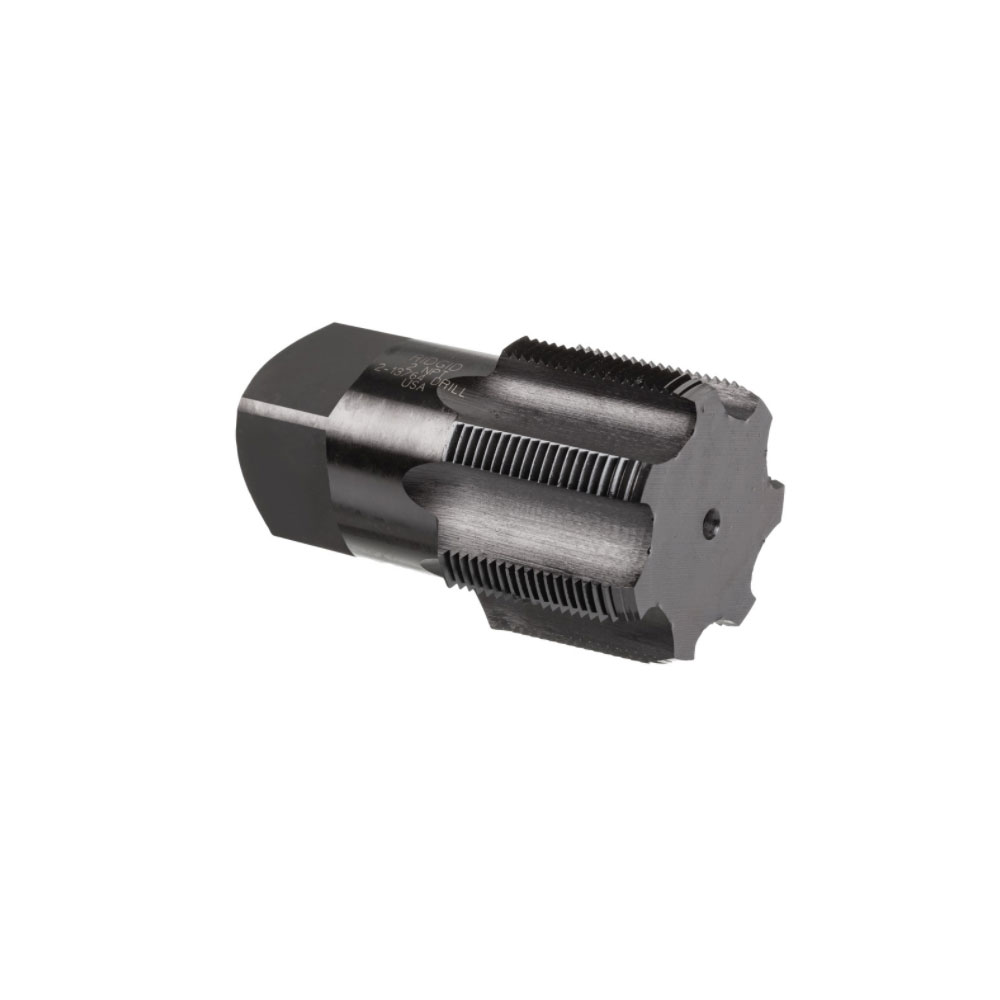

- Made from carbon steel in right hand configuration only.
- These taps are especially suited for restricted area work.
- All taps have taper of 3/4" per foot.
- Marked with drill size for pilot hole.
- Brand: RIDGID
- Product Code: Pipe Taps: Hand Use Only
- Catalog Number: 35815 - 35820 - 35825
- Made from carbon steel in right hand configuration only.
