| 1 1/4" - 6" Schedule 10 steel and stainless steel. | ||||
| 1 1/4" - 3" Schedule 40 steel and stainless steel. | ||||
| Optional 2" - 6" copper (Type K, L, M, DWV). | ||||
| Optional 1" Schedule 10, 40 steel pipe. | ||||
| 1 1/4" - 1 1/2" and 2" - 6" AWWA roll sets. | ||||
|
CATALOG NUMBER |
MODEL NO. | DESCRIPTION | WEIGHT | |
| LB. | KG | |||
| 45007 | 916 | Roll Groover for 300 Power Drive | 33 | 15.0 |
| 46852 | 916 | Roll Groover for Copper Tubing for 300 Power Drive | 34 | 15.5 |
| 60382 | 916 | Roll Groover for 535 | 33 | 15.0 |
| 48307 | 916 | Roll Groover for 300 Compact/ 1233 | 33 | 15.0 |
|
ACCESSORIES
|
||||
|
CATALOG NUMBER |
DESCRIPTION | WEIGHT | ||
| LB. | KG | |||
| 45347 | Roll Set f/1" incl. Ref. No. 35 & 36 | 6 | 2.6 | |
| 45352 | Roll Set f/Copper Tubing incl. Ref. No. 35 & 36 | 6 | 2.6 | |
| 69667 | Roll Set 1 1/4" to 1 1/2" (AWWA) | 6 | 2.6 | |
| 69692 | Roll Set 2" to 6" (AWWA) | 6 | 2.6 | |
| 67662 | Adapter Bracket for 300 Compact | 30 | 13.6 | |
| 76822 | 918 Roll Grover Inch Diameter Tape | 1/2 | 0.1 | |
| 76827 | 918 Roll Grover Metric Diameter Tape | 1/2 | 0.1 | |
- Specifically designed for field service roll grooving applications.
- Quick and easy mount to RIDGID 300 Power Drive, 535 or 300 Compact Threading Machines.
- Cam-type feed actuation – translates into minimum operator effort to form roll grooves.
- Depth adjustment screw separate from feed mechanism allows for consistent groove depth.
- Lightweight for easy transport and storage.
- Integral feed handle is part of overall unit. No extra tools required.
- Easy serviceability – drive and groove rolls are easy to change.
- Brand: RIDGID
- Product Code: 916
- Catalog Number: 45007 - 46852 - 60382

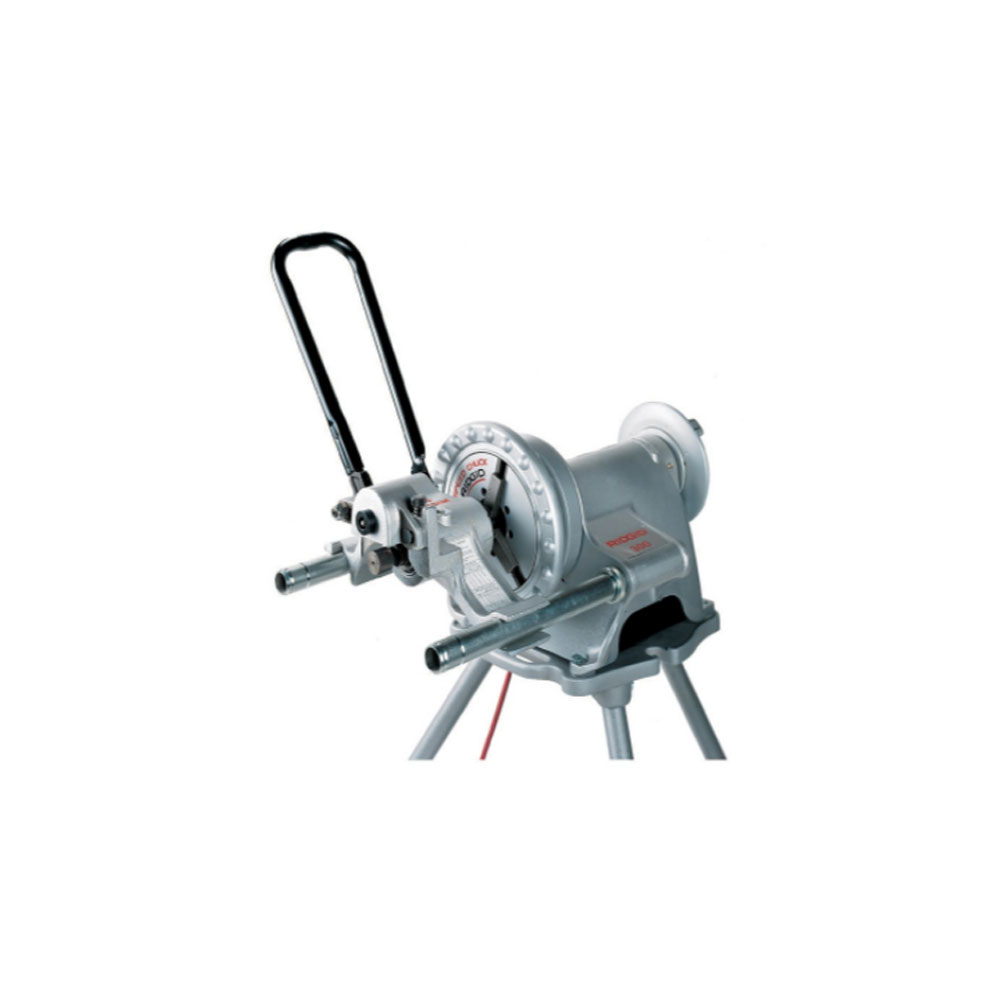

- The RIDGID® Model 916 Roll Groover is the most durable and efficient lightweight portable unit available. Built with a solid, durable cast-iron housing, it withstands heavy usage, yet is light enough for easy transportation. The 916 features a patented single stroke feed mechanism that allows for accurate operation quickly and effortlessly.
