Tensions |
230 V Mono / 400 V driefasig - triphasé |
|
Planer |
|
|
Planer width |
410 mm |
|
Total length planer table |
1800 mm |
|
Spindle diameter |
70 mm |
|
Knives |
3 |
|
Dimensions of knives |
410 x 25 x 3 mm |
|
R.P.M. |
5500 U/min / R.P.M. |
|
Length planer fence |
1500 mm |
|
Height planer fence |
150 mm |
|
Inclination planer fence |
90° - 45° |
|
Max. planer capacity |
4 mm |
|
Motor power |
5 Ps/h |
|
Thicknesser |
|
|
Dimensions table |
600 x 410 mm |
|
Thickness capacity |
230 mm |
|
Diameter feeder rollers |
30 mm |
|
Feed speed |
6 m/min |
|
Mortiser (option) |
|
|
Capacity chuck |
0 - 16 mm |
|
Travel |
165 x 140 x 85 mm |
- Up to 230 mm thicknessing capacity with precision setting and locking. The very sturdy central column and positive feed system ensure excellent results.
- With the wheelsystem, you can easily move your machine.
- 01 Klok ave a total length of 1800 mm. Handwheel whit integrated analogue read out thickness table.
- The large, hard anodized, jointer fence makes edge planing easy. Thanks to its special swivel-support bracket, the fence sets at any angle without a gap between the fence and the table surface.
-
“TERSA” cutter-block with 3 reversible knives (HSS), provides quick precise setting of the knives.

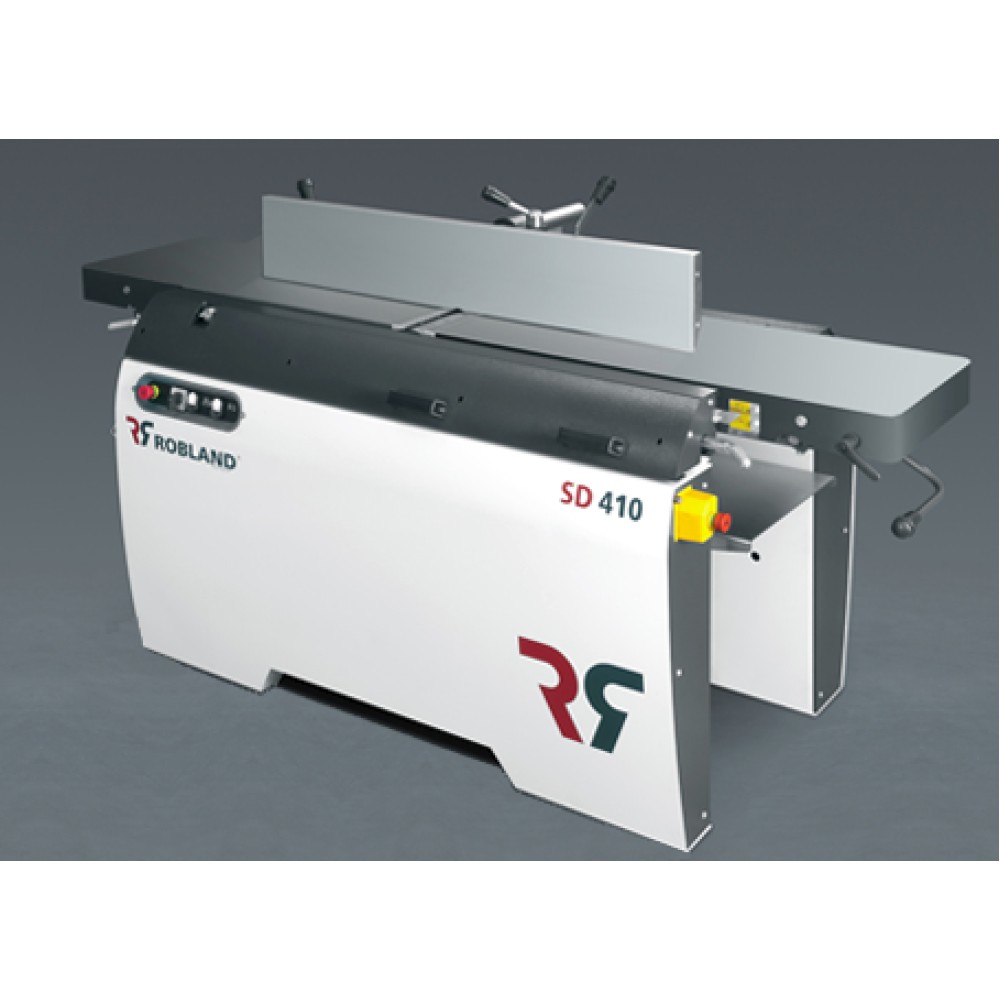

- Brand: ROBLAND
- Product Code: NXSD-410
- Up to 230 mm thicknessing capacity with precision setting and locking. The very sturdy central column and positive feed system ensure excellent results.
- With the wheelsystem, you can easily move your machine.
- 01 Klok ave a total length of 1800 mm. Handwheel whit integrated analogue read out thickness table.
- The large, hard anodized, jointer fence makes edge planing easy. Thanks to its special swivel-support bracket, the fence sets at any angle without a gap between the fence and the table surface.
-
“TERSA” cutter-block with 3 reversible knives (HSS), provides quick precise setting of the knives.
