Model Number |
Element 50/1 / Element 50/3 |
|
Motor Specification |
110V 1500W / 230V 1500W |
|
No Load RPM |
Low Gear: 100-265 RPM |
|
High Gear: 200-500 RPM |
|
|
Max Hole Cutting Capacity |
ø50 x 50mm Deep ? 23mm with MT Shank Drill |
|
Overall Dimensions |
Height: 460mm / Width: 195mm with Capstan / Length: 400mm with Guard |
|
Machine Weight |
15.8kg |
|
Magnetic Adhesion |
13,500N |
|
Magnet Size |
200mm x 98mm |
|
Safety Features |
Cutsmart? Technology / Fixed Guard / Magnetic Detection / Mechanical Clutch |
|
Model Number |
Element 50/1 / Element 50/3 |

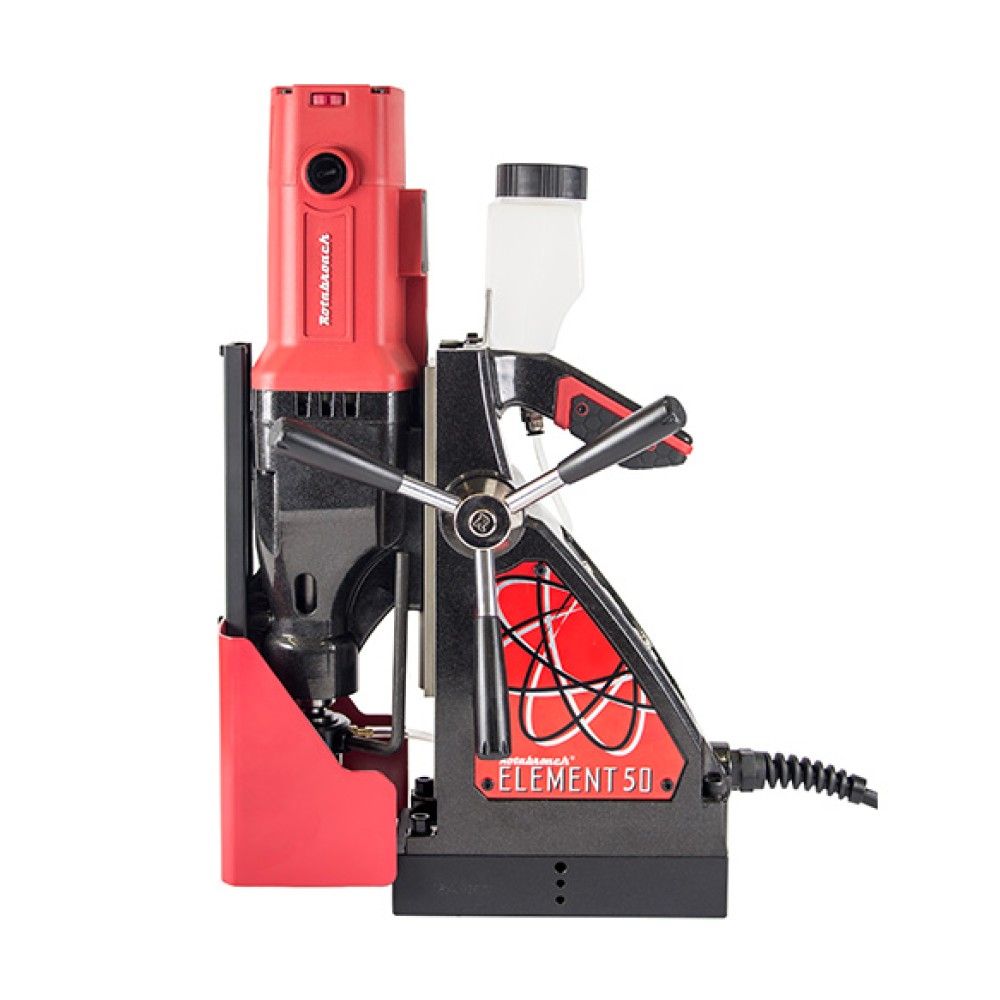

- The ‘Element 50’ is one of Rotabroach’s most versatile machines.
- Small in size, with reversible features to allow tapping.
- Suitable for drilling up to 50mm diameter by 50mm depth.
- The ‘Element 50’ can be supplied as a non-tapping machine.
- The Elements use a dual motor protection system
prolonging the machines life.
- Brand: ROTABROACH
- Product Code: ELEMENT-50
- The
‘Element 50’ is one of Rotabroach’s most versatile machines.
- Small in size, with reversible features to allow tapping.
