| Punching | |||
| Punching Pressure | 100 Ton | ||
| Punch Capacity | ø28 x 26 | ||
| (Diameter x Thickness) | ø50 x 15 | ||
| Throat Depth S: | 310 | ||
| Channel Flange Punch (Height) | 180 | ||
| Max. Stroke Length | 100 | ||
| Cycles / Min. (20mm stroke) | 28 | ||
| Working Height Up to Die | 1044 | ||
| Flat Shearing | |||
| Flat Bar Shearing | 610 x 16 | ||
| (Width x Thickness) | 400x 20 | ||
| Blade Length | 620 | ||
| Angle Flange Trim | 100 | ||
| Working Height | 954 | ||
| Angle Shearing | |||
| At 90° Shearing | 152 x 152 x 15 | ||
| At 45° Miter Shearing | 80 x 80 x 10 | ||
| Working Height | 1216 | ||
| Bar Shearing | |||
| Round Bar Shear | ø45 | ||
| Square Bar Shear | 45x45 | ||
| Channel Shear | 152 | ||
| I Beams Shear | 152 | ||
| Working Height | 1332 | ||
| Notching | |||
| Rectangular Notcher (WxDxT) | 63.5 x 90 x 12 | ||
| Vee-Notcher (Side x Side x T) | 105 x 105 x12 | ||
| Large V-Notcher (Side x Side x T) | 145 x145 x 12 | ||
| Working Height | 954 | ||
| Special Tooling | |||
| Single Vee Press Brake (W x T) | 250x20 | ||
| Multi Vee Press Brake(W x T) | 700x5 | ||
| Angle Bending | 102 x 13 | ||
| Pipe Notching | ø100 | ||
| Other | |||
| Electric Power (HP) | 10 HP | ||
| Net Weight (Apr.) | 2950KG | ||
| Gross Weight (Apr.) | 3180 KG | ||
| Machine Dimension(Apr.) (L x W x H) | 2100x860x1810 | ||
| Packing Dimension(Apr.) (L x W x H) | 2370x1020x2090 | ||

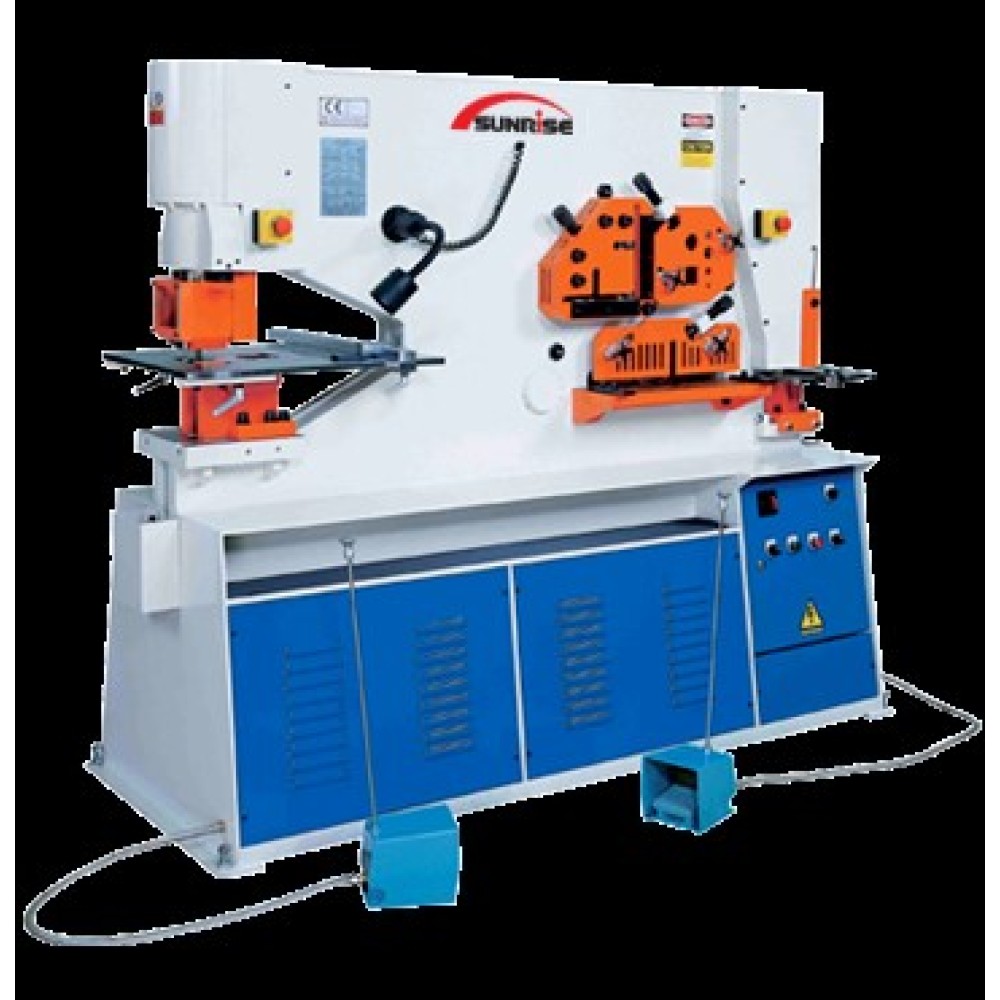

The double cylinder "S/SD" series are in the Sunrise tradition of well
engineered ironworkers built for high power, quality, and reliability. These
ironworkers have two control foot paddles, and separate operations can be safely
performed simultaneously. The low pressure setting for tool change provides
maximum operation safety. The long punching cylinder stroke and deep throat
enable mounting a wide range of special equipment. The large punching base with
the "T-slot" fixing provide a solid base for securing the punching
tooling, as well as a wide range of optional and custom designed tooling..
- Brand: SUNRISE
- Product Code: IW-100-S
The double cylinder "S/SD" series are in the Sunrise tradition of well
engineered ironworkers built for high power, quality, and reliability. These
ironworkers have two control foot paddles, and separate operations can be
safely performed simultaneously.
