| 3 kW 50~60Hz 230V |
| 32 Lt/dak. |
| 6~8 Bar |
| max h:130mm. b:140mm.(max.) a:30°-180° |
| W: 75 L: 430 H: 170 cm. |
| 720 kg. |
|
580 kg.
|
- Fully automatic two corner welding of PVC
window profiles at an angle of 90° - Possibility of precise welding of profiles
between 30°-180° on the left head - All parameters such as melting and
welding time, welding pressure are set on
the control panel independently - Continuous precision of welding quality
by means of linear rails - Welding two corners of window frames or
sash profiles are carried out in one cycle - User friendly with practical Teflon change
feature by means of the roller system - Saving of time by means of most practical
mold change system in the market - Capable of adjusting the clamp and
weld ing pressure according to the profile
type - Adjusting the heat between 0-300°C via
electronic thermostat - Practical setting of standard (2 mm) or
seamless (0.2 mm for free of flashes)
welding options - The movable right unit moves manually
and left welding unit is fixed at 90° - After clamping the profiles, the welding is
carried out automatically - The moveable right welding unit is
equipped with a brake system - For safety reasons, the clamp pistons
operate with low pressure - Equipped with two pcs. of support arms

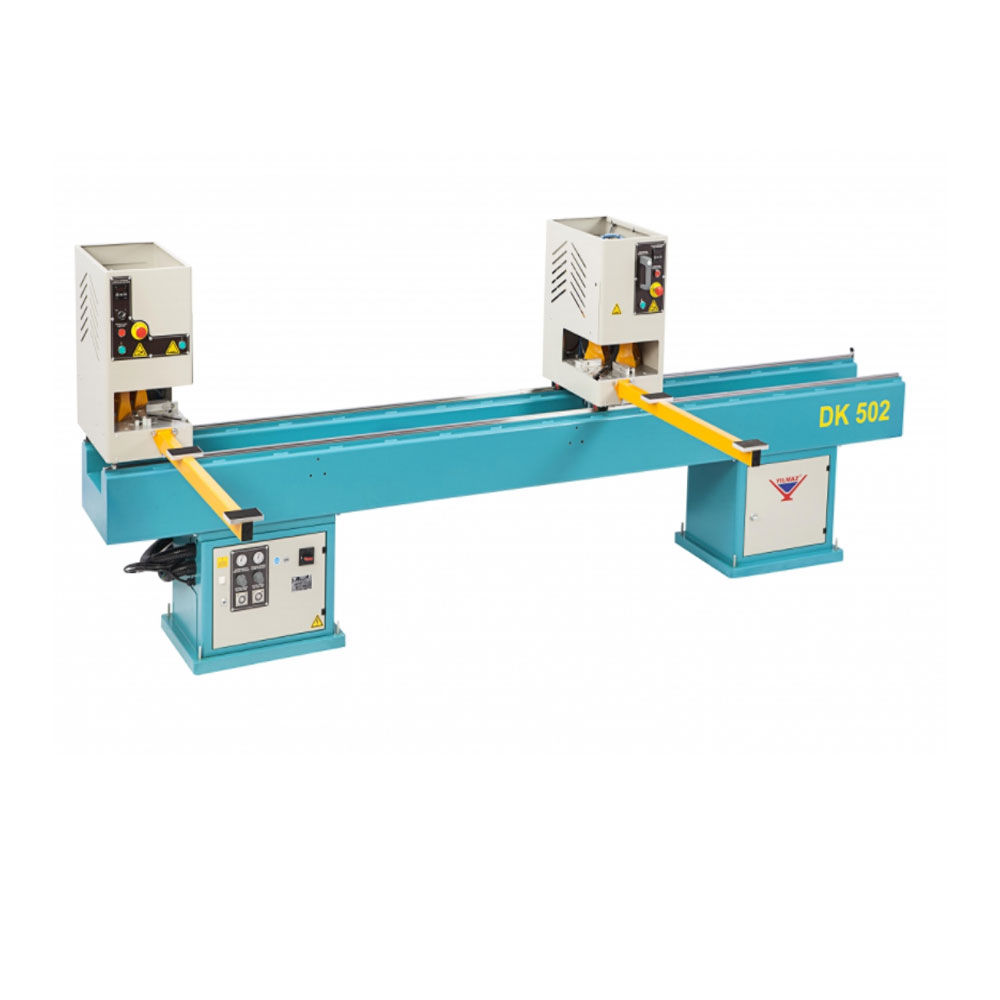

- Brand: YILMAZ
- Product Code: DK 502
Machine is ideal for welding process of PVC plastic profiles at two corners.
