2x750W 400V 50~60 Hz |
5 Lt/dak |
6~8 Bar |
x:270 y:110 z:130 mm |
14000 D/dak RPM. |
9000 D/dak RPM. |
W: 64 L: 80 H: 149 cm |
136 kg. |
98 kg.
|
- Opening locks, drilling handles, hinges,
espagnolette holes etc. on PVC and alumi
num profiles - Cast aluminum structure
- Corrosion proof bearing shaft
- Robust machine stand constructed from
steel sheet - Manual Triple Hole Drilling Mechanism
- Equipped with tools for triple drilling
mechanism (2x Ø 10, 1x Ø 13mm) - Equipped with Ø8 cutter tool
STANDARD ACCESSORIES
- Ø8 router bit
- 2x left and right profile stops
- 2x horizontal clamps
- Air gun
OPTIONAL ACCESSORIES
- Spray tool lubrication system
- Additional router bit
- Special copy template
- MA 240 centering apparatus
- MKN 150 roller conveyor
- Brand: YILMAZ

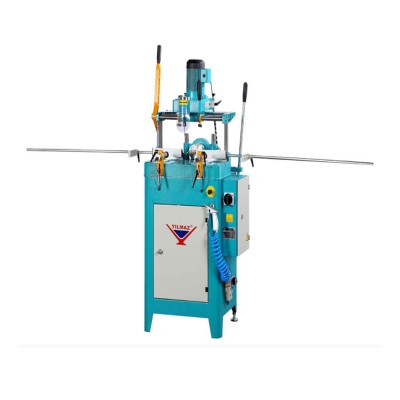

- Product Code: FR 225
![](https://www.midcoequipment.com/image/cache/catalog/manufactures/YILMAZ-219x109.jpg)
It is used for the processing of slots for locks, drilling handles, hinges, espagnolette holes and opening water drain slot on PVC and aluminium profiles.
