| 800 W 50 Hz 230 V AC N PE |
| 3000 dev/dak. RPM |
| D = 300 mm d = 30 / 32 mm |
| W = 63 L = 52 H = 48 |
| 29 |
| 26 |
GENERAL FEATURES
- Location points at 45°- 30°- 22.5° -15°- 0° both left and right
- 0-45° miter angle range to the right and left infinitely adjustable
- 0-45° bevel range to the left (KY 310)
- Dead man switch & Dynamic motor brake unit (KD 310 B / KY 310 B)
- Vibration reducing horizontal & ergonomic handle adds comfort and control
- Lateral and longitudinal cutting feature on the upper table
- Strong spring system and protective shield
STANDARD ACCESSORIES
- Profile support
- 1x horizontal manual clamp
OPTIONAL ACCESSORIES
- Machine stand
- MKN150 roller conveyors
- MKN300 roller conveyors
- MS type of machine stand
- Ø 300 mm saw blade
- Brand: YILMAZ
- Product Code: KD 310

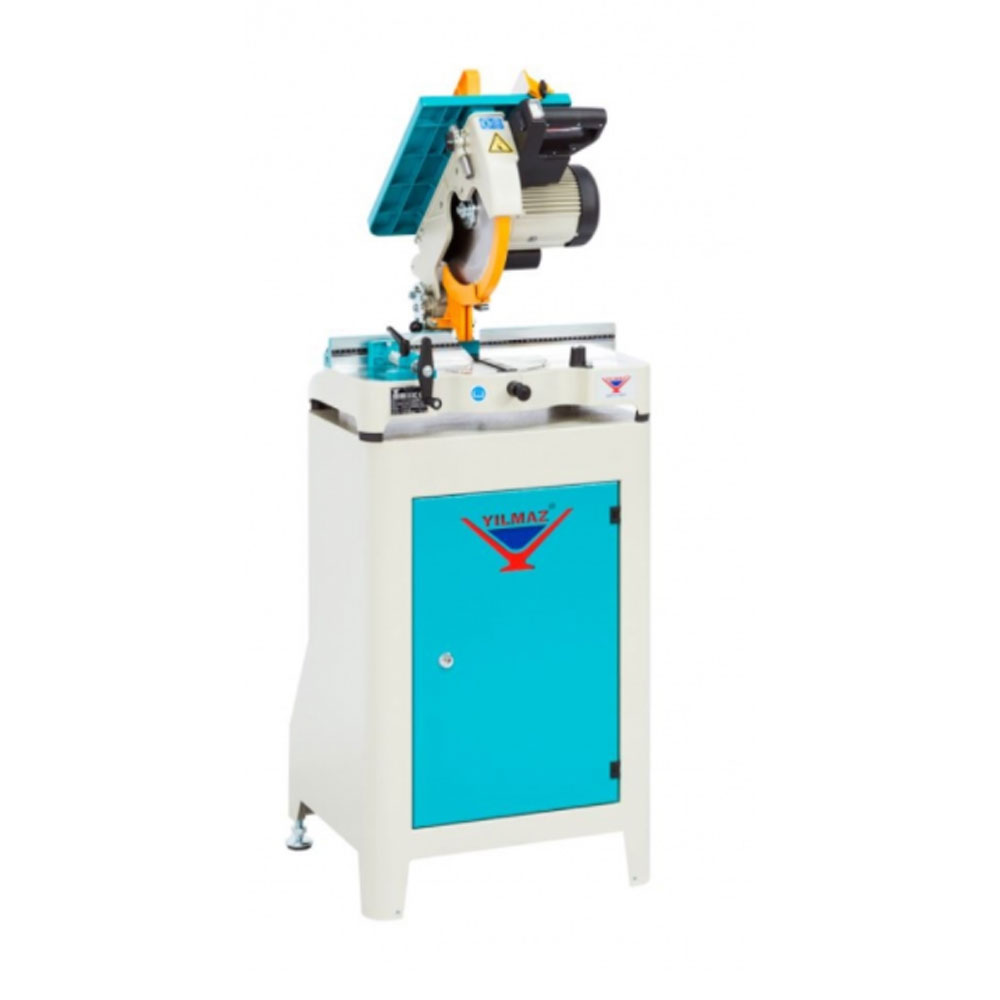

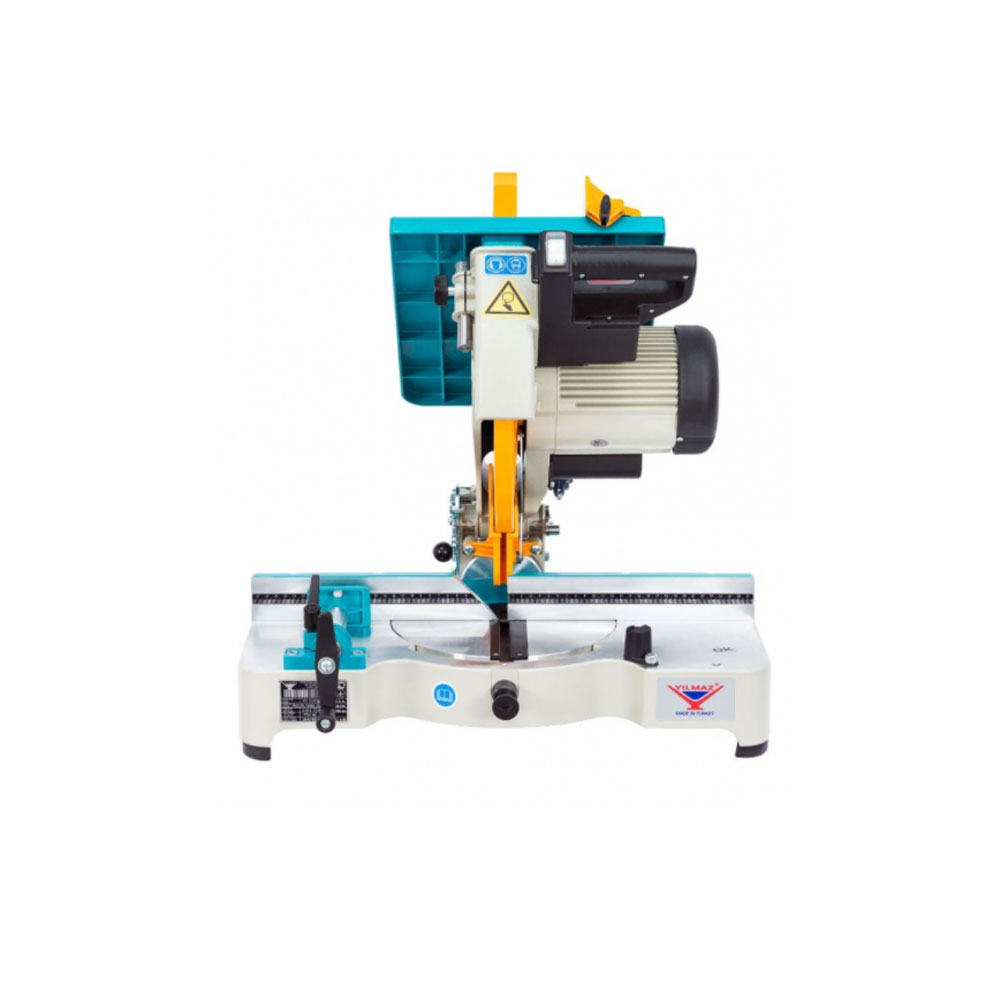

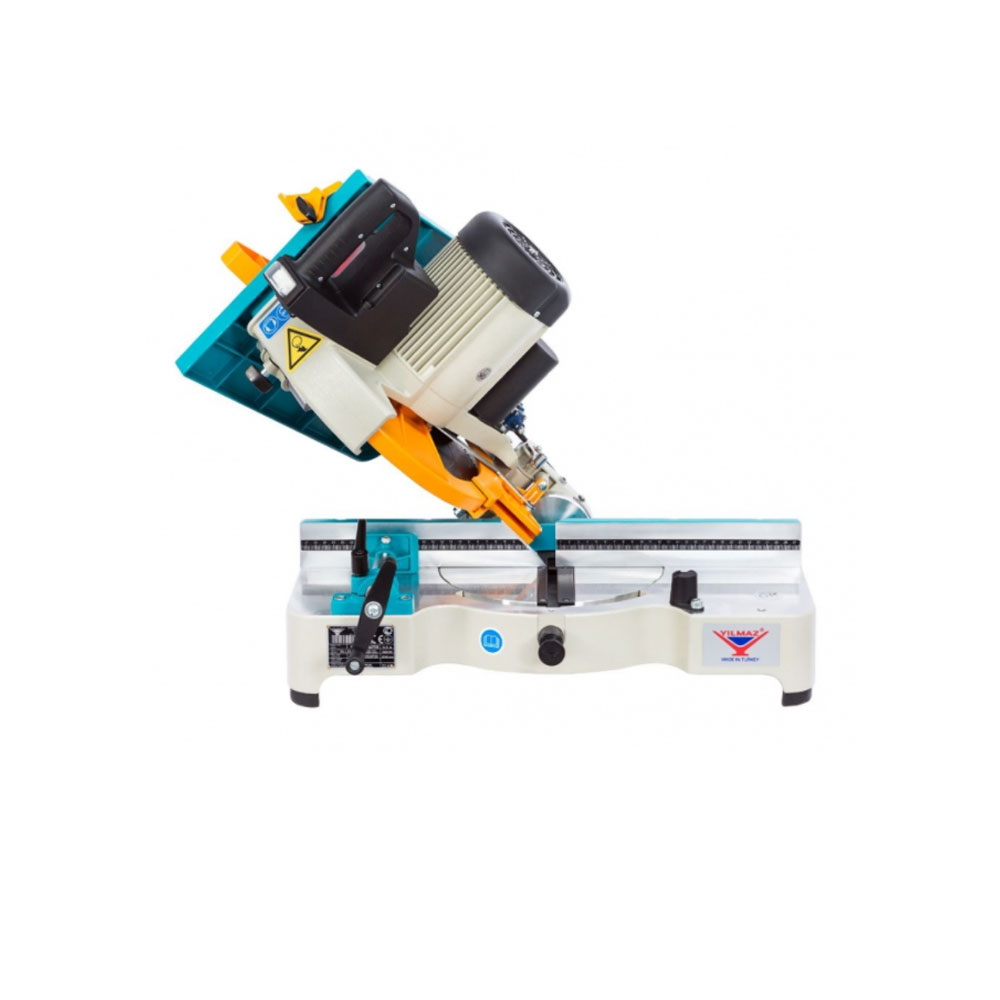

KD 310 and KY 310 portable miter saw machines are designed for straight and angular cutting of PVC, aluminum and wooden profiles
