| 2.2 kW x 2 50/60Hz |
| 400V AC 3P PE |
| 3000 D/dak RPM |
| D:400 d:30/32 mm. |
| 46 Lt/dak. |
| 6/8 Bar |
| W: 75 L: 410 H: 170 cm. |
| 622 kg. |
|
487 kg.
|
- Two-hand safety operation
- Location points at 45°-30°-22.5°-15°-90°
both left and right - Pivoting range +90°- 45° inwards and
outwards infinitely adjustable - Hydro-pneumatic saw blade feed
- Manual positioning of cutting units
- On/off switch for horizontal clamp
- Pressure control valves on the clamps for
the adjustment of the profile fixing - Pneumatically locked on position
- Digital measuring display to ensure the
optimum cutting length of the profiles
STANDARD ACCESSORIES
- Equipped with 2 x Ø 420 mm of saw blades
- Profile support mechanism
- 3 x horizontal clamps
- 2 x vertical clamps
- Spray saw blade lubrication system
- Air gun
OPTIONAL ACCESSORIES
- Chip vacuum extractor & accessories
- Brand: YILMAZ
- Product Code: KD 402 S

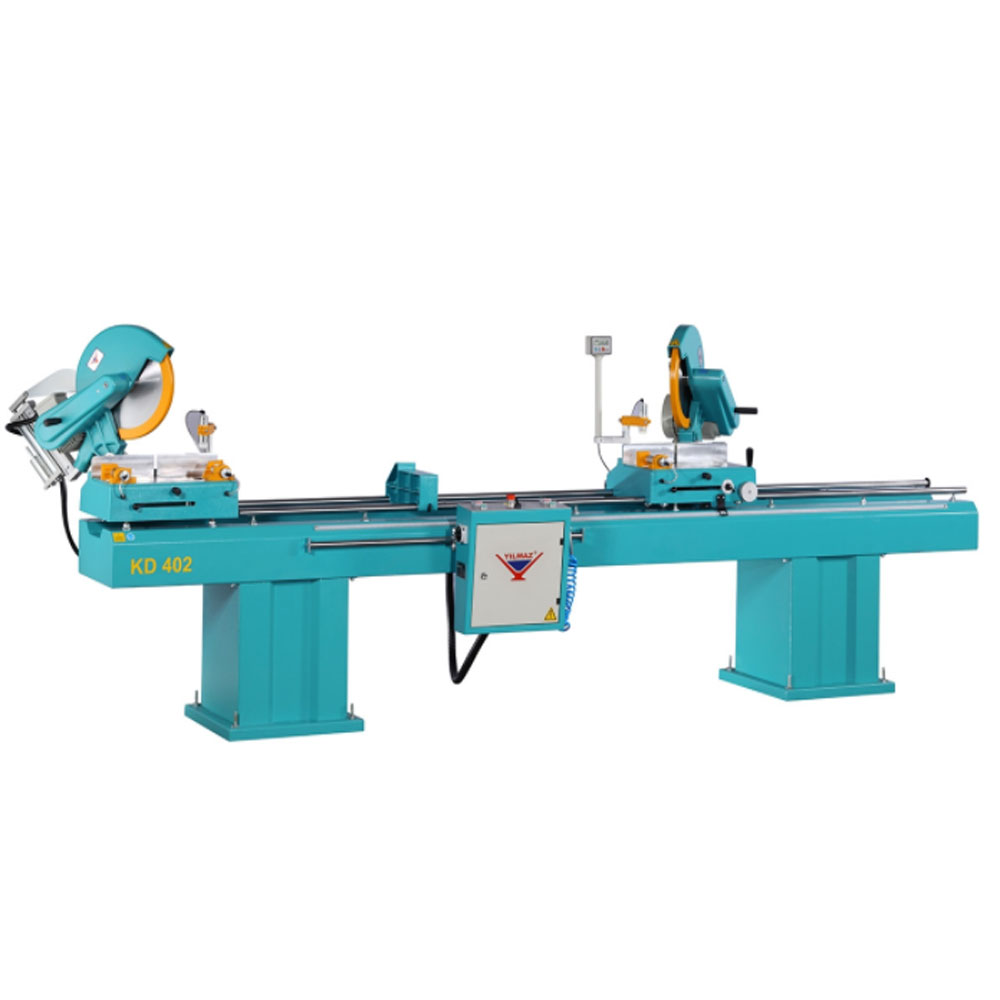

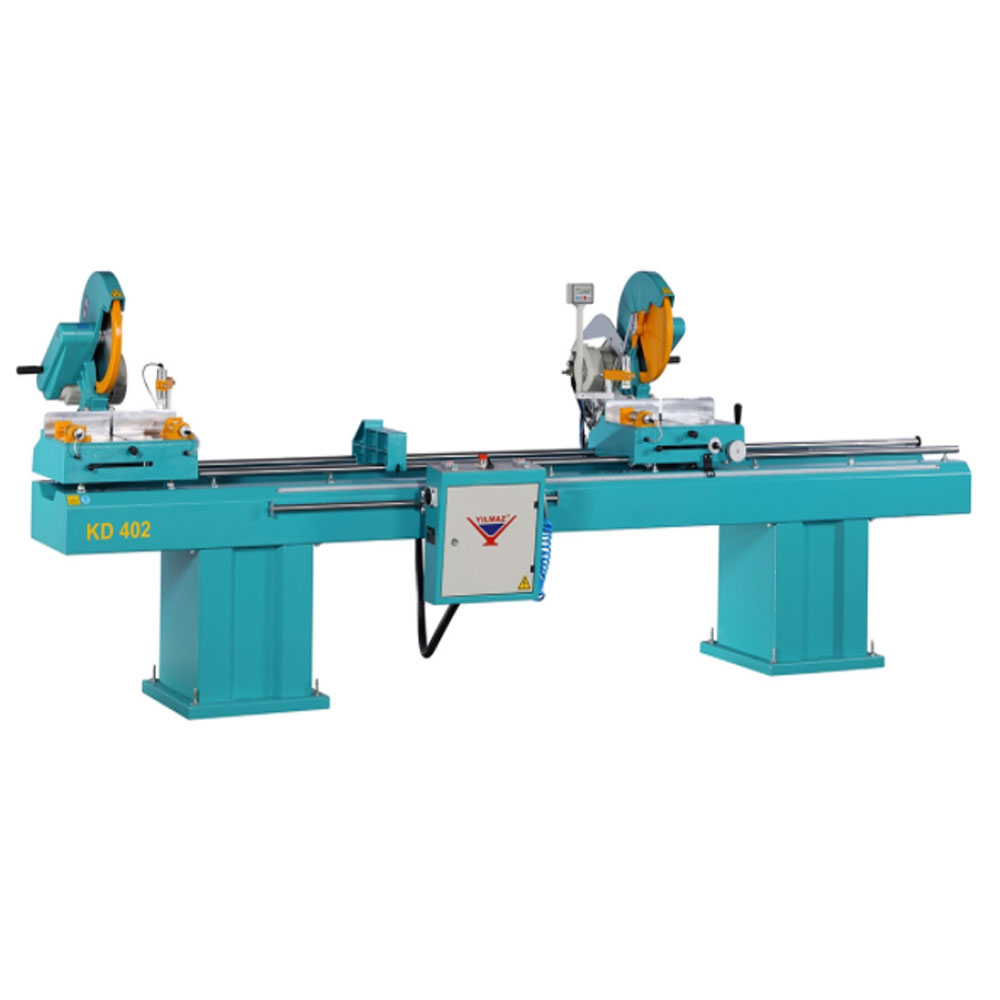

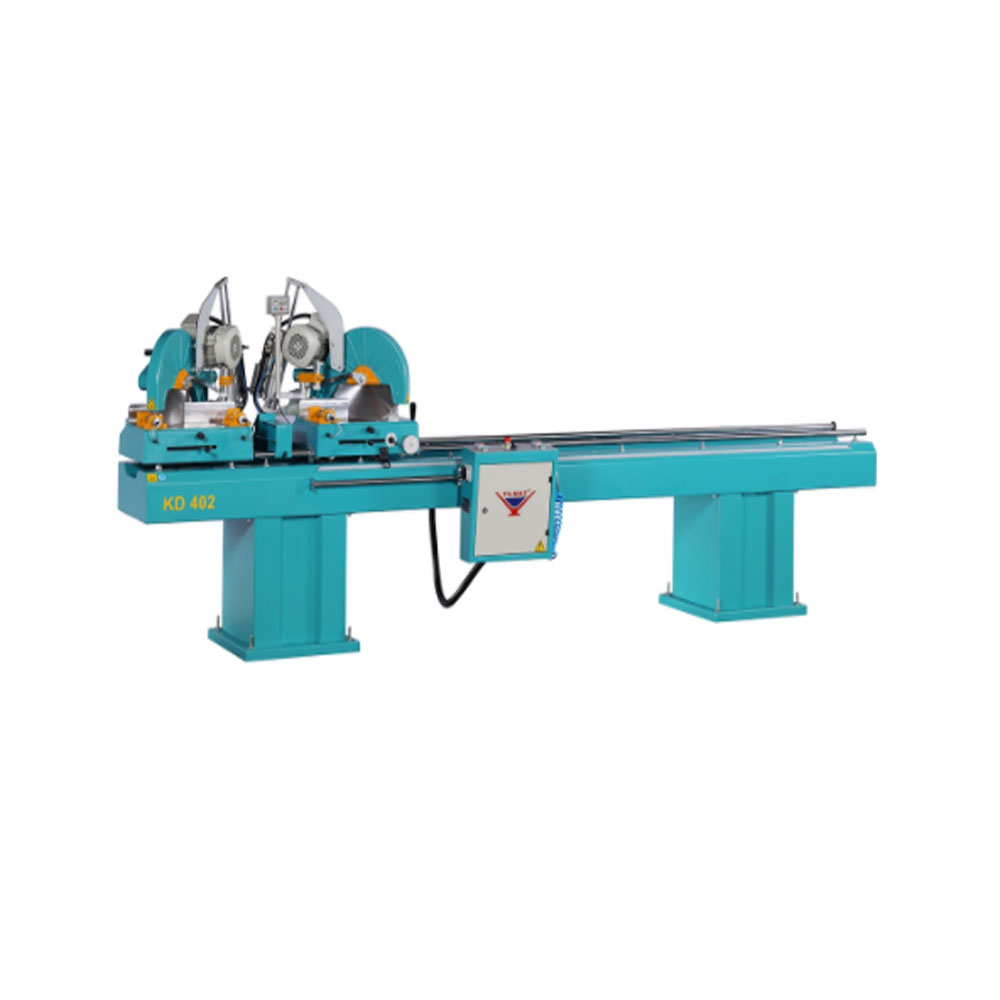

KD 402 S is designed for the strait or angular cutting operations of large size of profiles made of PVC and
aluminum materials by means of double head sawing units equipped with Ø 400 mm of saw blades .
