800W/1200W 50/60Hz |
230V AC P N PE 400VAC 3P PE |
3000 D/dak RPM |
D:161 d:30 mm |
6/8 Bar |
5 Lt/dak |
W: 58 L: 46 H:110 cm |
64 kg. |
62 kg.
|
- High quality end milling operations by
means of the manual operation - Safety operations with safety guard
- Practical cutter adjustment by means of
the gap parts - Fixing the workpiece by means of the
pneumatic vertical and horizontal clamps - Robust machine stand
- End milling profile dim.
( HxW): 90 x 260 mm - Max. saw blade diameter: Ø170 mm
STANDARD ACCESSORIES
- 1 x pneumatic vertical clamp
- 1 x pneumatic horizontal clamp
- Air gun
OPTIONAL ACCESSORIES
- Milling cutter set
- Spray tool lubrication system
- MKN 100 roller conveyor
- Brand: YILMAZ
- Product Code: KM 211

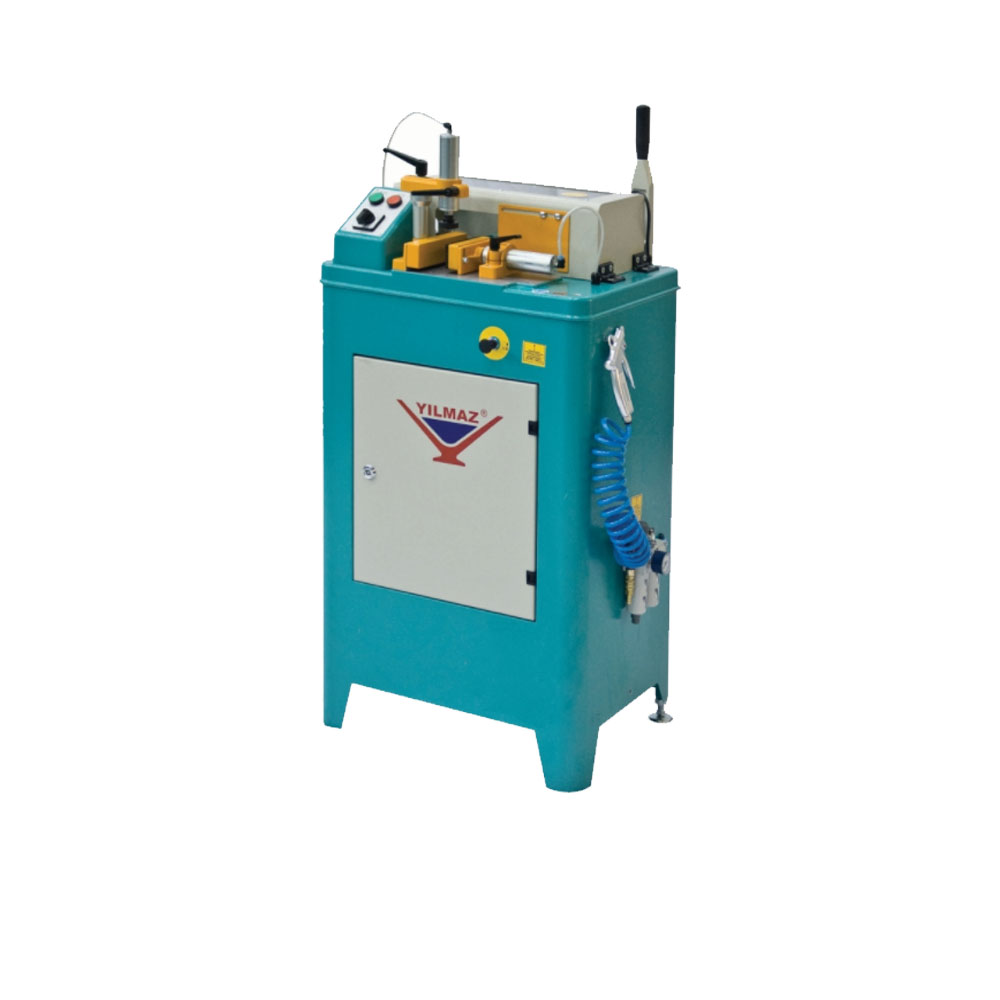

Machine which works manually, ideal for end milling operations on PVC and aluminum profiles precisely.
