| 800 W~1 50~60 Hz / 1200 W~3 400V 50-~60 Hz |
| 3000 D/dak RPM |
| D: Max. 160 mm d:30 mm |
| 6~8 Bar |
| 14 Lt/dak |
| W:55 L:95 H:127 cm. |
| 119 kg. |
| 90 kg. |
- High quality end milling operations by
means of the hydro-pneumatic system - Practical change of cutter provides ease of
operation (KM 215) - Adjustable support system to four different
profiles - Safety operations with safety guard
- End milling of PVC and aluminum profiles
between -22.5° and + 22.5° - End milling of PVC mullions between 45°
and 90° - Cutter storage location
- Practical cutter adjustment by means of the
gap parts - Fixing the workpiece firmly by means of the
vertical and horizontal clamps - Robust machine stand
- End milling profile dim.(H x W): 90x150 mm
(KM 215 ), 90x320 mm (KM 216) - Max. saw blade diameter: Ø170 mm
(KM 215), Ø210 (KM 216
STANDARD ACCESSORIES
- 1 x pneumatic vertical clamp
- 1 x pneumatic horizontal clamp
- Air gun
OPTIONAL ACCESSORIES
- Milling cutter set
- Spray tool lubrication system
- MKN 100 roller conveyor
- Brand: YILMAZ
- Product Code: KM 215

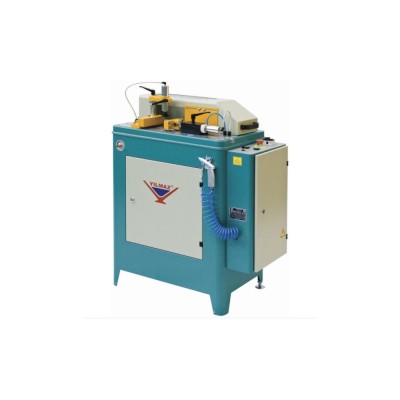

Machines which work with hydro-pneumatic system, ideal for the end milling operations on PVC and aluminum profiles precisely.
