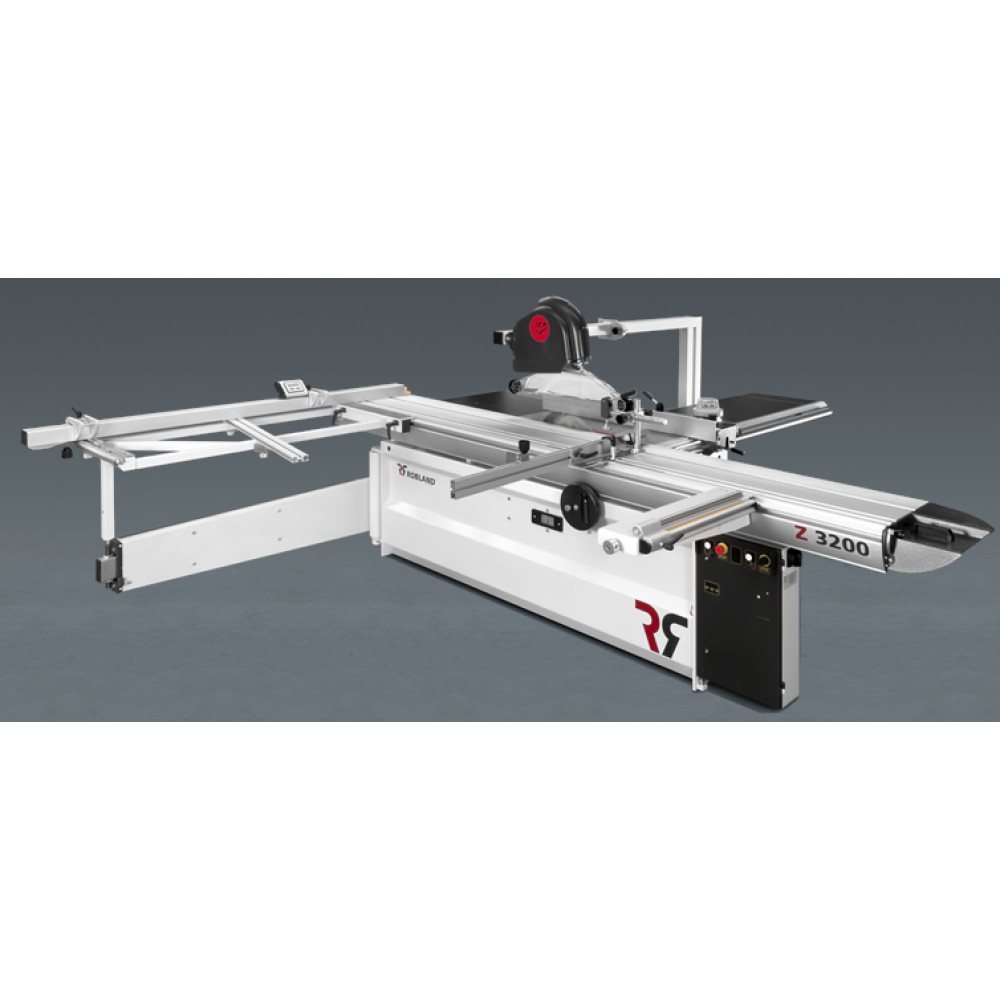

Z 3200

Tension	230V / 400V / 230V Single phase/Einphasig
Motor three phase	5,5 Kw 7,5 PS/hp option 10 PS/hp
Weight (net)	1200 kg (Z2500 1150 kg, Z3800 1250 kg)
Dimensions crate (LxWxH) Z3200	2270 x 1330 x 1020 + 3250 x 450 x 200
Dimensions crate (LxWxH) Z3800	2270 x 1330 x 1020 + 3850 x 450 x 200
Saw
Diameter saw blade and bore		400 x 30 mm
Cutting depth at 90° / 45°		125 mm / 100 mm
R.p.m		. 3000 / 4000 / 5000
Sawblade tilting		90° - 45°
Cutting width parallel fence		1380 mm
Cutting length		3200 (option 3800) mm
Dimensions cast iron table		885 x 700 mm
Dimensions sliding table		3200 x 420 (option 3800) mm
Dimensions cross-cut table		1420 x 500 mm
Length cross-cut fence		1800(telescopes/teleskopisch 2850 mm)
Scoring saw
Diameter saw blade and bore		120 x 20 mm
Cutting depth with		120 mm diameter blade 3,5 mm
R.p.m.		8200
Scoring saw motor power		0,75 PS/hp
Equipment
Dust suction ports			120 + 80 mm
Extra support table and fence			Standard/standard
Mitre fence and woodclamp on sliding table			Standard/standard
Digital read-out on the parallel fence			Option / option
Digital read-out on 1 flip stop of the fence			Option / option
Roller suppport			Option / option

The main 90° cut-off fence telescopes to 2.7 m and assures square cuts
Quick adjustable scoring unit thickness
On the machine: support table with extra squaring fence
Extra support table
The optional digital read out on the parallel fence offers versatility and exact measurements
The optional digital flip stop on the cross-cut fence guarantees reliable repetitive precision
The overhead sawguard is hinged which makes it easy to fold it out of the way. Height adjustment of main sawblade and scoring blade, and left to right adjustment of scoring blade
The adjustment is very positive using a cam system with precise window indicating tilt degree
The hand wheel allows you to wind with ease the saw blade up/down or tilt the saw unit even with the motor down
The hard anodized extrusion of the sliding table is precision machined. The heart of the sliding table is 8 hardened steel rods inserted into the table extrusion, thus making the whole system extremely wear-free
Standard parallel fence with micro adjuster, small and narrow cuts with saw blade tilted are no problem.

Write a review

Your Name

Your Review

Note: HTML is not translated!

Rating Bad Good

Brand:

ROBLAND

Z-3200

The main 90° cut-off fence telescopes to 2.7 m and assures square cuts.
Quick adjustable scoring unit thickness.
On the machine: support table with extra squaring fence.
Extra support table.
The optional digital read out on the parallel fence offers versatility and exact measurements.
The optional digital flip stop on the cross-cut fence guarantees reliable repetitive precision.
